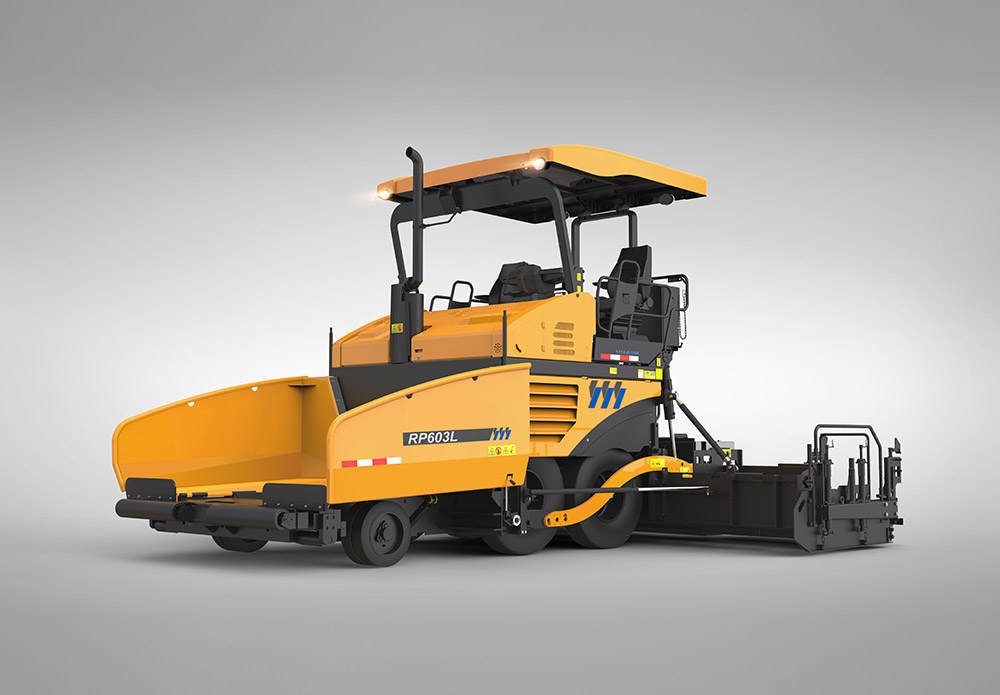

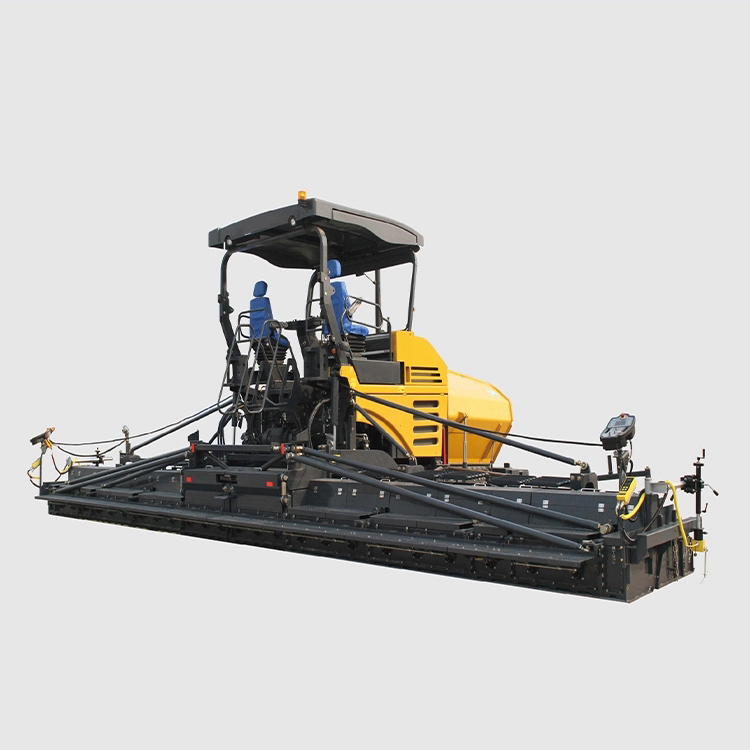

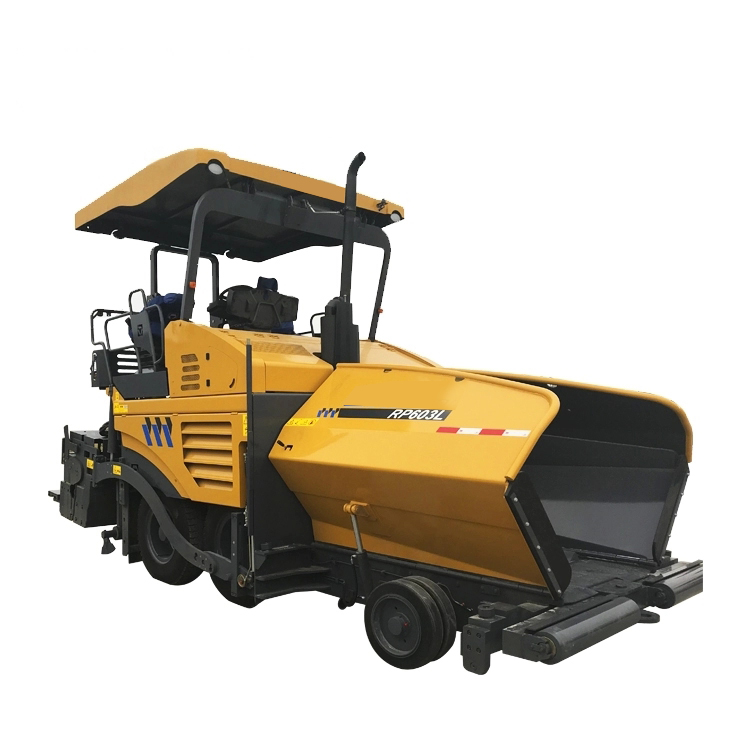

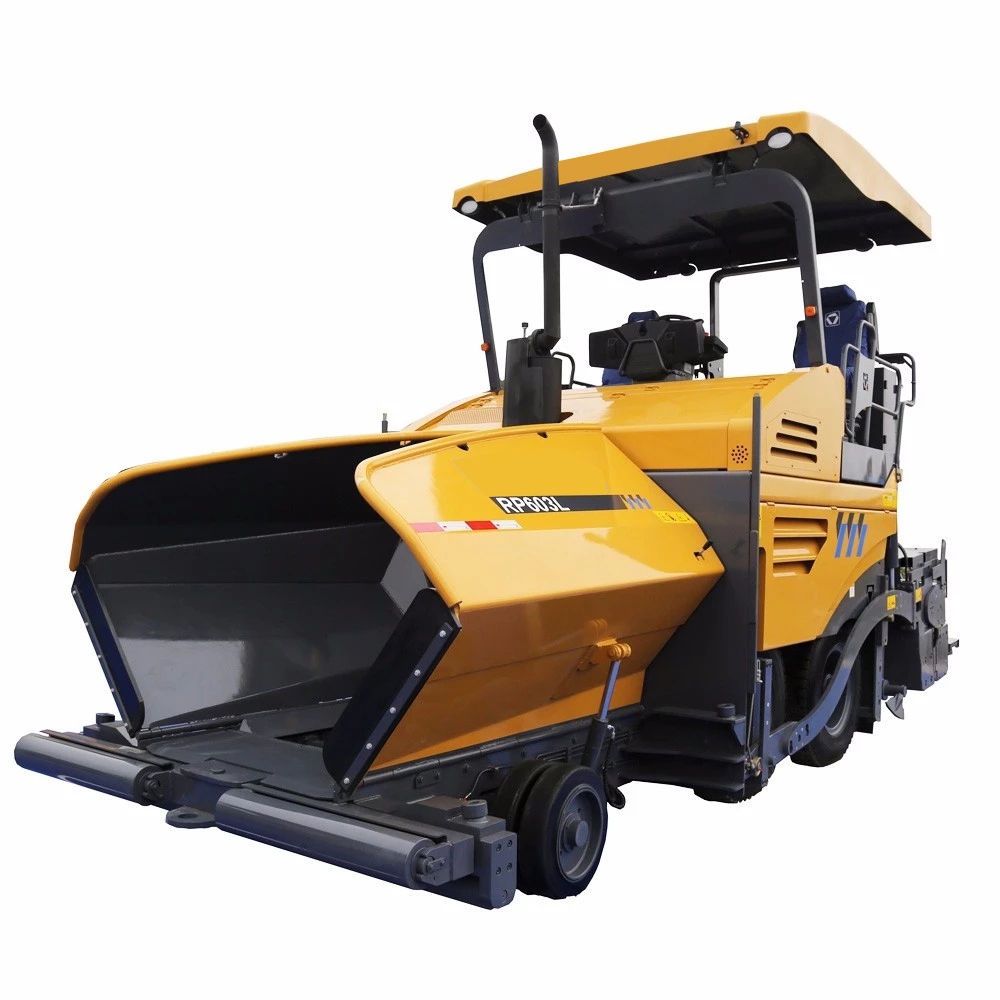

XCMG RP603L Asphalt Concrete Paver


Similar Product





<<  BACK TO LIST

Pavement width of 2.5m to 6.0m and flexibility of transition of tire paver, fully hydraulic four-wheel drive, continuously variable, with SC4H water-cooled engine (103kw/2200rpm), hydraulic system using electro-hydraulic proportional control.

 Technology, independent transmission and distribution drive, so that the power output is efficient, 13t hopper design is large, the new compact left and right independently drive the delivery bin, the distribution device can be easily moved up and down to adapt to different paving thickness, reduce the material segregation, electricity .

The control system design is based on the CAN bus technology.

The automatic leveling device can be used to control the paving thickness and slope accurately.

The vertical flatness can reach 3mm/3m and the transverse gradient is within 0.02%.



Model


RP603L

Description

Unit

Parameter value

Basic pave width

m

2.6-4.75

Maximum pave width

m

6

Maximum layer thickness

mm

260

Maximum paving speed

m/min

17

Maximum driving speed

km/h

15

Hopper capacity

t

13

Maximum laydown rate

t/h

400

Engine model


Shangchai SC4H

Rated power

kW/rpm

103/2200

Transport dimension

mm

6660x2600×3180

Transport weight

t

                        16.5

Dimension

mm

              6660×2600×4000

Weight

t

                        18.5
