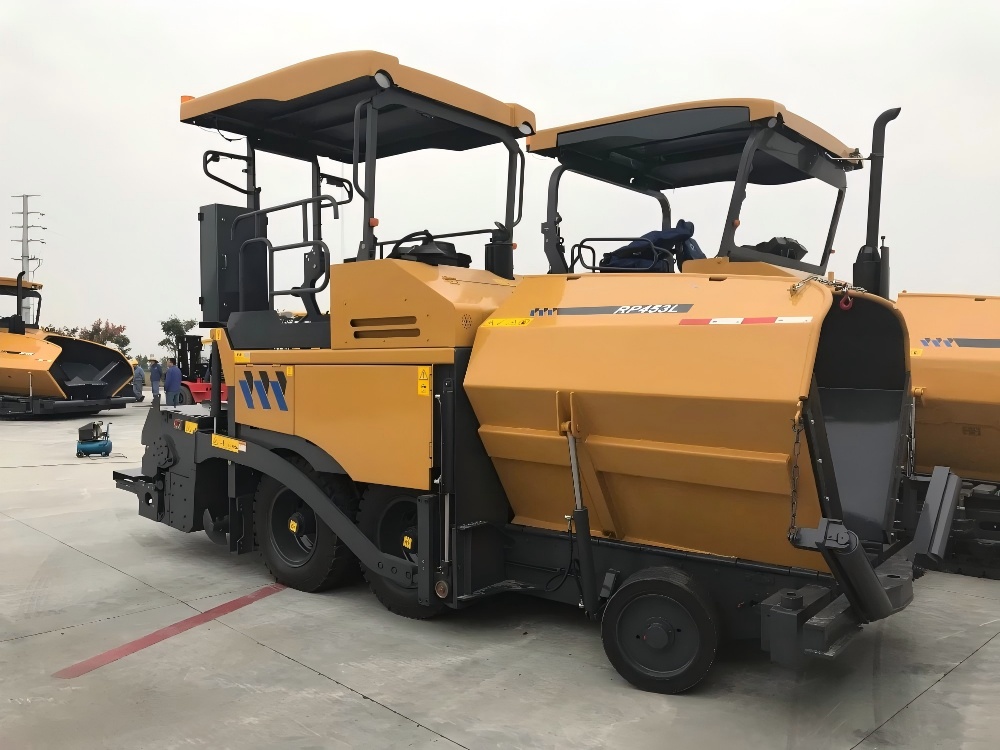

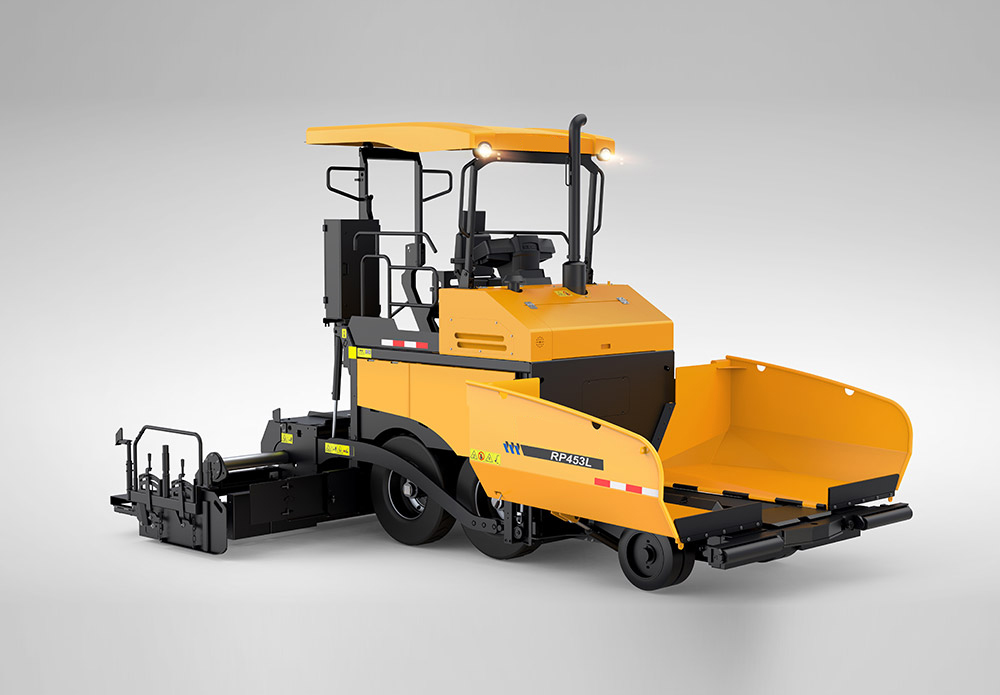

Home > Road machineryAsphalt concrete paver XCMG RP453L Asphalt Concrete Paver
Full hydraulic four-wheel drive, continuously variable, equipped with SC4H100G3 water-cooled turbocharged diesel engine, power up to 73.5KW.
Gas heated hydraulic telescoping screed, steplessly adjustable vibration frequency, paving width from 2 meters to 4.5 meters Width, the functional console is modularized, the control system of the main switchgear is used.
The automatic leveling device is used, the vertical flatness is 3mm/3M, the transverse gradient is within 0.02%, wet multi-disc brakes are used for driving and Parking brake, the whole machine is safe and reliable, and the material-discharging blades are made of highly wear-resistant Cr-Ni-based materials to extend the service life.
Model | RP453L | |
Description | Unit | Parameter value |
Basic pave width | m | 1.8-3.4 |
Maximum pave width | m | 4.5 |
Maximum layer thickness | mm | 260 |
Maximum paving speed | m/min | 20 |
Maximum driving speed | km/h | 3.6 |
Hopper capacity | t | 12 |
Maximum laydown rate | t/h | 240 |
Engine model | Shangchai SC4H | |
Rated power | kW/rpm | 73.5/2000 |
Transport dimension | mm | 6260x1900×3050 |
Transport weight | t | 11 |
Dimension | mm | 6260×1900×3750 |
Weight | t | 11.9 |
