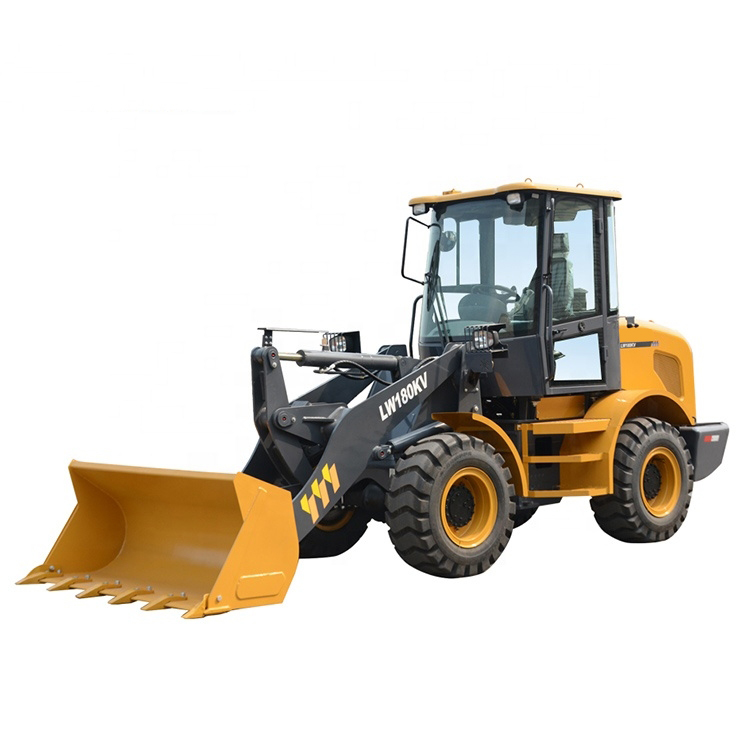

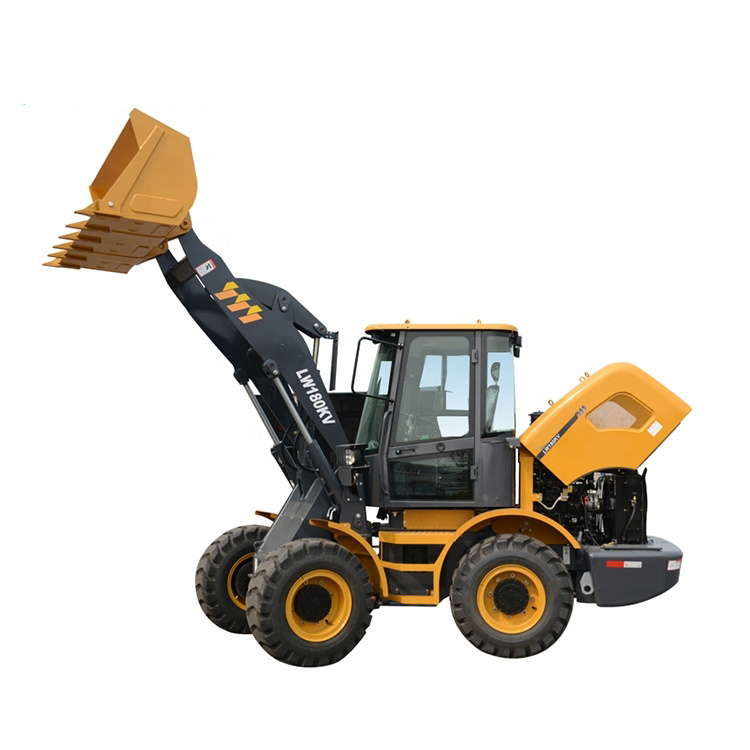

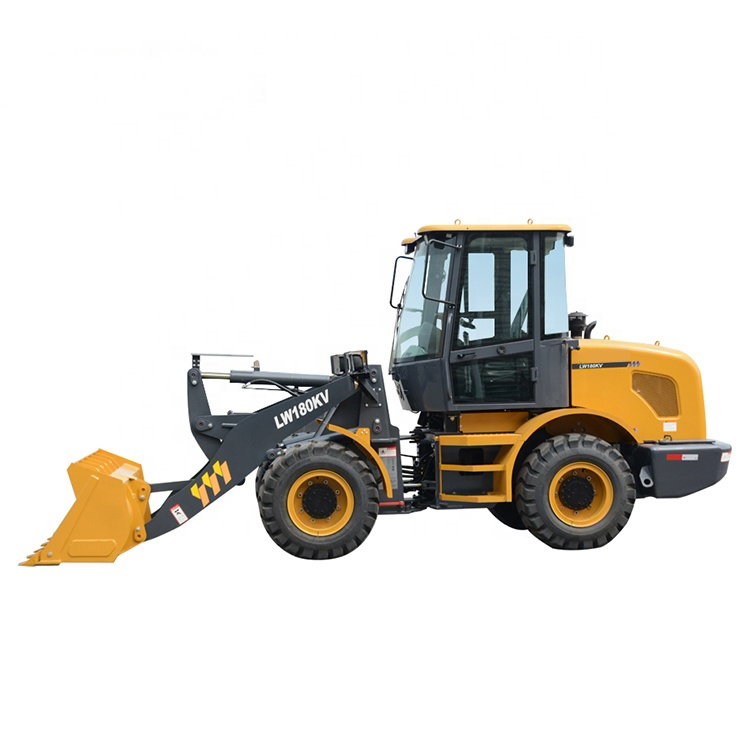

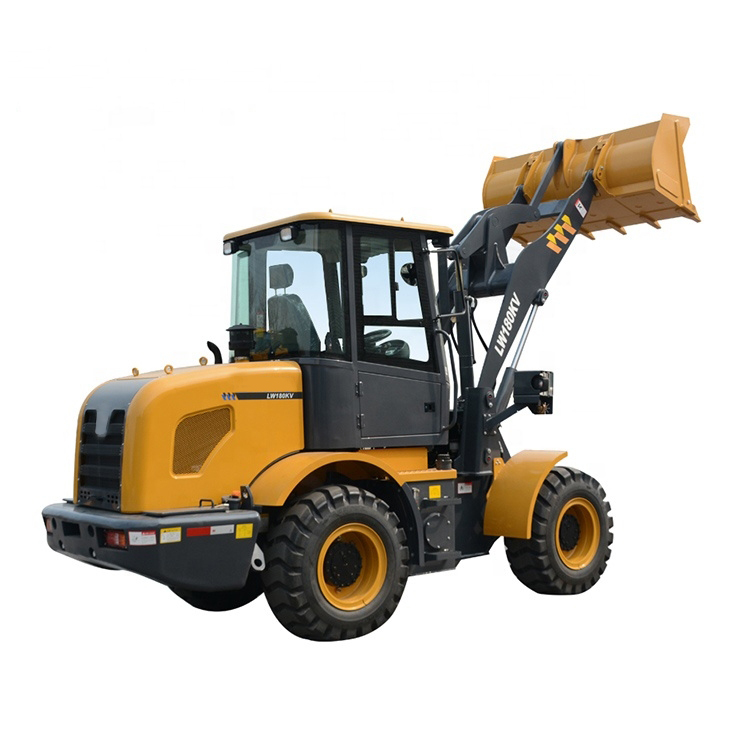

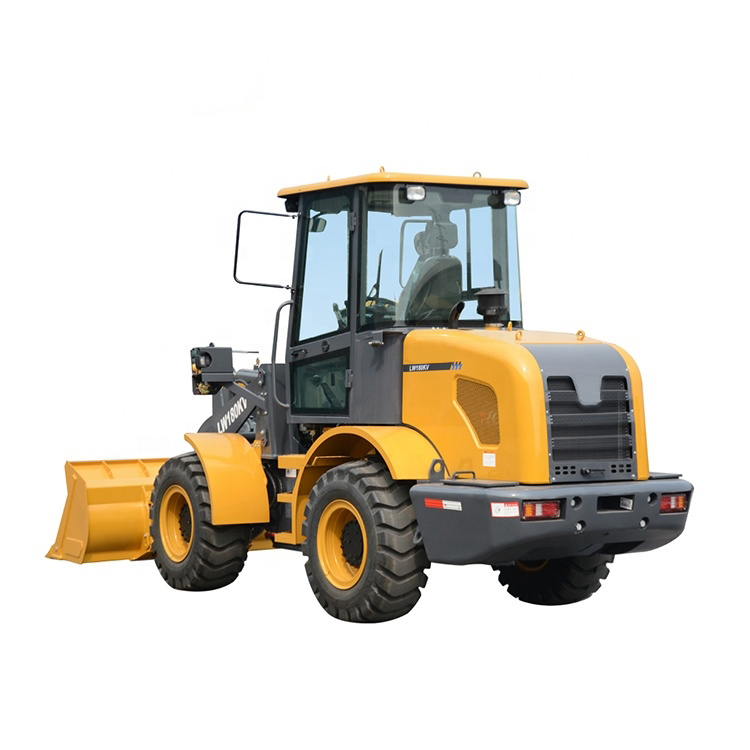

Home > Earth moving machineryWheel loaderXCMG LW180KV Wheel Loader
Large strength: the strong bucket breakout force of 17 ton and strong traction of 16.5 ton ensure that the machine could adapt to various tough condition.
Reliable operation: with the long wheelbase of 3300mm and long machine body of 8185mm, the machine is ahead in the industry in terms of the operation reliability.
High dumping: the dumping height of the long boom reaches more than 3.7m, leading in the industry.
High efficiency
Fast operation: the total time of three devices is only 11s, and the speed is 15km/hour during the operation.
Flexible steering: pilot flow amplification steering, flexible and efficient.
Sufficient power: dual-pump combination, using the power efficiently.
Strong structure
Heavy load design, the front and rear frame adopt girder structure, robot welding, high antitorque coefficient and strong overloading ability.
The key structural parts adopt the finite-element analysis to ensure that the machine could adapt to various kinds of dangerous working condition.
Large distance between up and down articulated plate expands the maintenance space and resolves the load horizontally and vertically.
With the overlong machine body and reasonable load distribution, the machine adapts to heavy load.
Item | Unit | Specification（LW180KV） |
Rated load | t | 1.8 |
Bucket capacity | m3 | 1 |
Dumping height | mm | 2670 |
Dumping distance | mm | 900 |
Lifting time | s | 5 |
Digging force | kn | 50 |
wheel base | mm | 2200 |
Tread | mm | 1490 |
I gear(Forward/Reverse) | km/h | 6/6 |
II gear(Forward/Reverse) | km/h | 24/24 |
Engine model No. | / | LR4105G72DA/YTR4105G91 |
Rated power | kw | 60/55 |
Dimension (L*W*H) | mm | 5520*1960*2750 |
Overall weight | t | 5.4 |
Tyre | / | 16/70-20 |
