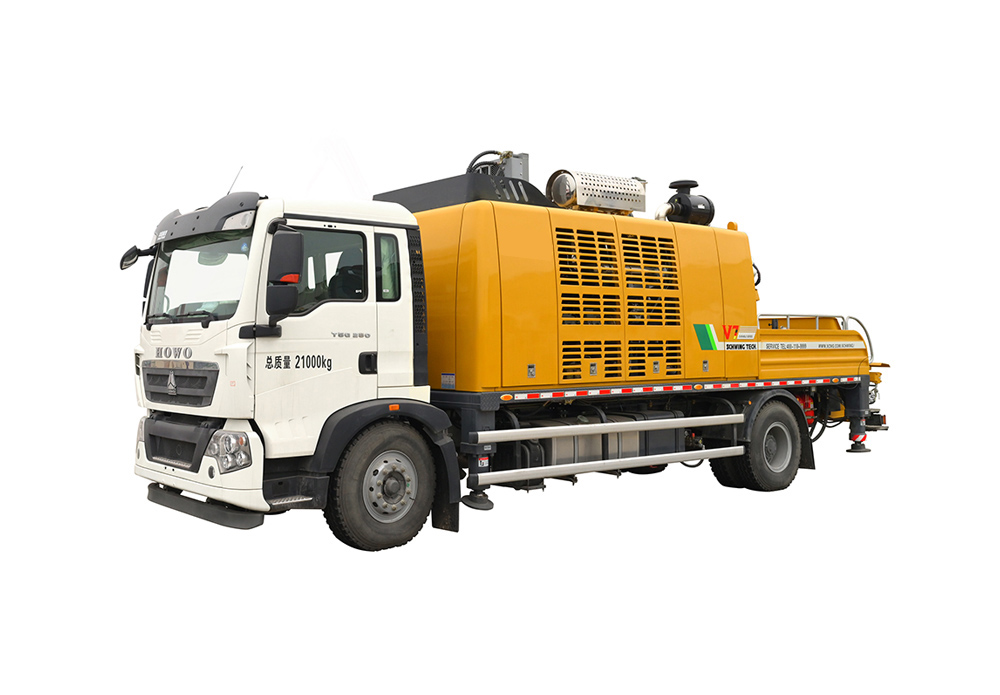

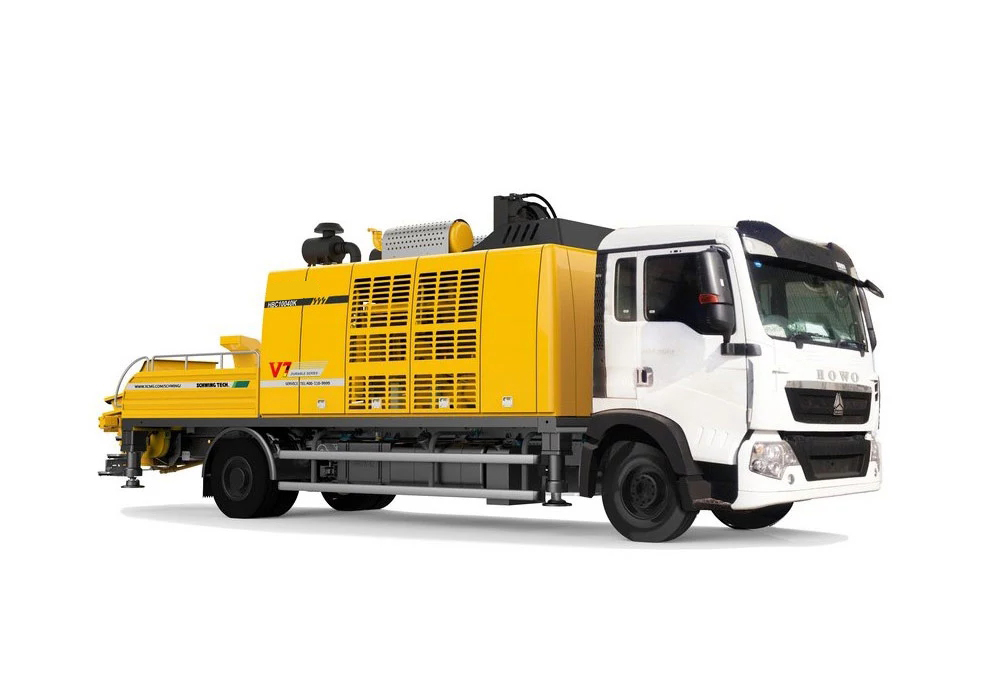

Home > Concrete machineryTruck-mounted Concrete Line Pump XCMG HBC10040K Truck-mounted Concrete Line Pump
Similar Product
Select the products
Item | Unit | Specification | |
Dimension(LxWxH) | mm | 10530×2500×3661 | |
Wheel base | mm | 5600 | |
Max.total mass | kg | 17980 | |
Chass | Model | ||
Manufacturer | Sinotruk | ||
Engine | Model | MC07.28-50 | |
Manufacturer | Sinotruk | ||
Emission Standards | V | ||
Displacement/Rated output | L/kW | 6.87/206 | |
Fuel tank capacity | L | 400 | |
Max.travel speed | Km/h | 93 | |
Theoretical output | At low pressure | m³/h | 105 |
At high pressure | m³/h | 60 | |
Theoretical delivery | At low pressure | Mpa | 23 |
At high pressure | Mpa | 40 | |
S-Valve change cycle | At low pressure | times/min | 30±1 |
At high pressure | times/min | 17±1 | |
Transport cylinder inner diameter x stork | mm | Φ180x2200 | |
Hopper capacity | m³ | 0.6 | |
Engine output | kW/r/min | 2*294/1900 | |
Hydraulic system | Main pump displacement | ml/r | 190+130/190+130 |
Hydraulic tank capacity | L | 1200 | |
High and low pressure swith-over | Auto | ||
water tank capacity | L | 200 |
