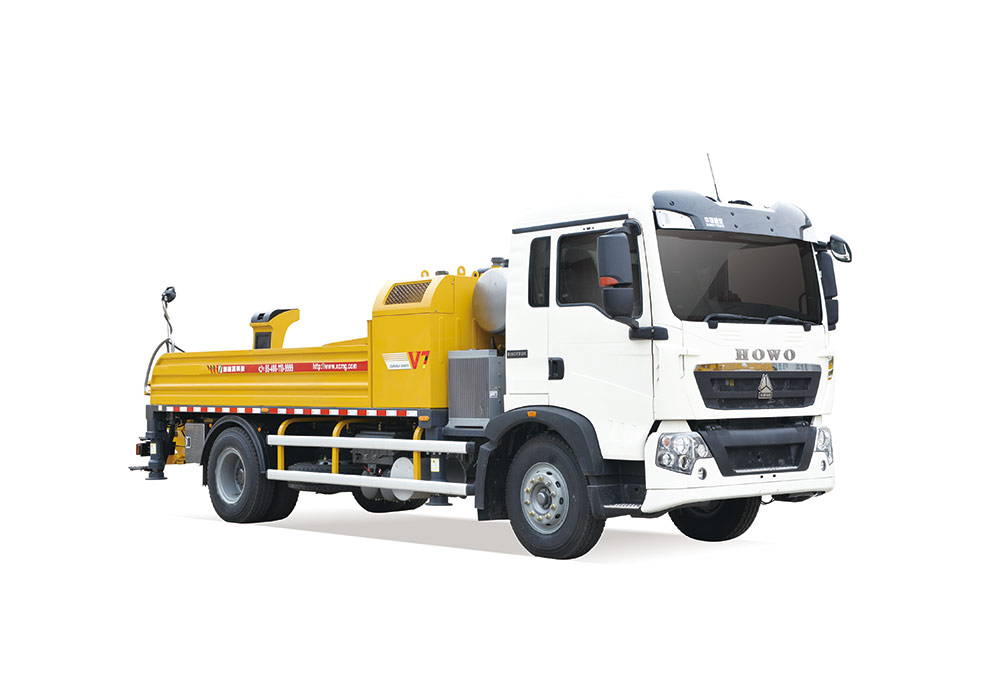

Home > Concrete machineryTruck-mounted Concrete Line Pump XCMG HBC10020K Truck-mounted Concrete Line Pump
Similar Product
Select the products
Item | Unit | Specification | |
Dimension(LxWxH) | mm | 9180x2470x3160 | |
Wheel base | mm | 4700 | |
Max.total mass | kg | 12480 | |
Chass | Model | DFL1120B13 | |
Manufacturer | Dongfeng Motor Company Limited | ||
Engine | Model | ISDe180 40 | |
Manufacturer | Dongfeng Cummins | ||
Emission Standards | IV | ||
Displacement/Rated output | L/kW | 4.5/132 | |
Fuel tank capacity | L | 160+160 | |
Max.travel speed | Km/h | 90 | |
Theoretical output | At low pressure | m³/h | 100 |
At high pressure | m³/h | 55 | |
Theoretical delivery | At low pressure | Mpa | 11 |
At high pressure | Mpa | 20 | |
S-Valve change cycle | At low pressure | times/min | 23±1 |
At high pressure | times/min | 12±1 | |
Transport cylinder inner diameter x stork | mm | φ230x1600 | |
Hopper capacity | m³ | 0.8 | |
Engine output | kW/r/min | 228/2300 | |
Hydraulic system | Main pump displacement | ml/r | 280 |
Hydraulic tank capacity | L | 600 | |
High and low pressure swith-over | Auto | ||
water tank capacity | L | 300 |
