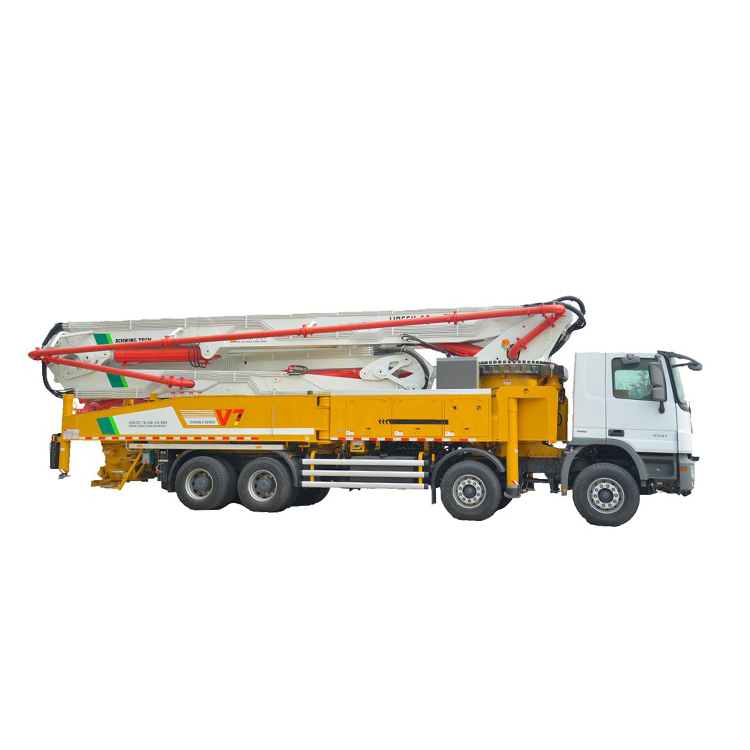

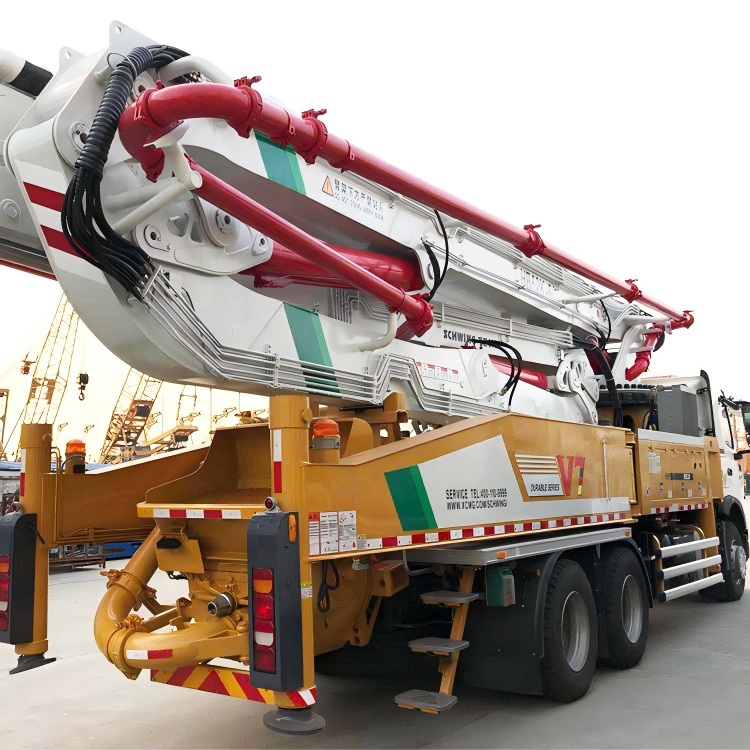

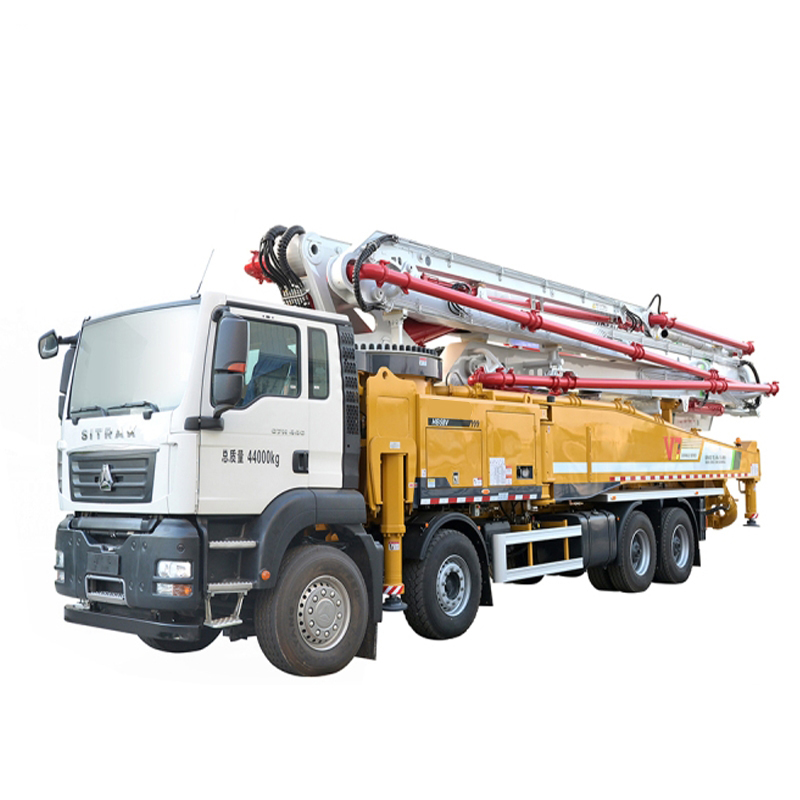

XCMG HB58K Truck Mounted Concrete Pump


Similar Product





<<  BACK TO LIST

Category

Item

Unit

HB58K

Overall

Outline dimension

km/h

14300×2500×4000

Overall weight

kg

44000

Chassis

Max. speed

km/h

85

Max. grade-ability

%

51.40%

Wheelbase

mm

2300+4000+1350

Engine

Model


OM501LA·IV/3

Max power

kw

305

Max. torque

N·m/(r/min)

2000/1080

Displacement

L

11.946

Pumping system

Theoretical output

m3/h

170

Concrete pumping pressure

Mpa

8

Theoretical pumping

time/min

21~23

Delivery cylinder diameter ×stroke

mm

 260/2200

Max.diameter of pumping concrete aggregate

mm

≤40

Filling height

mm

1540
