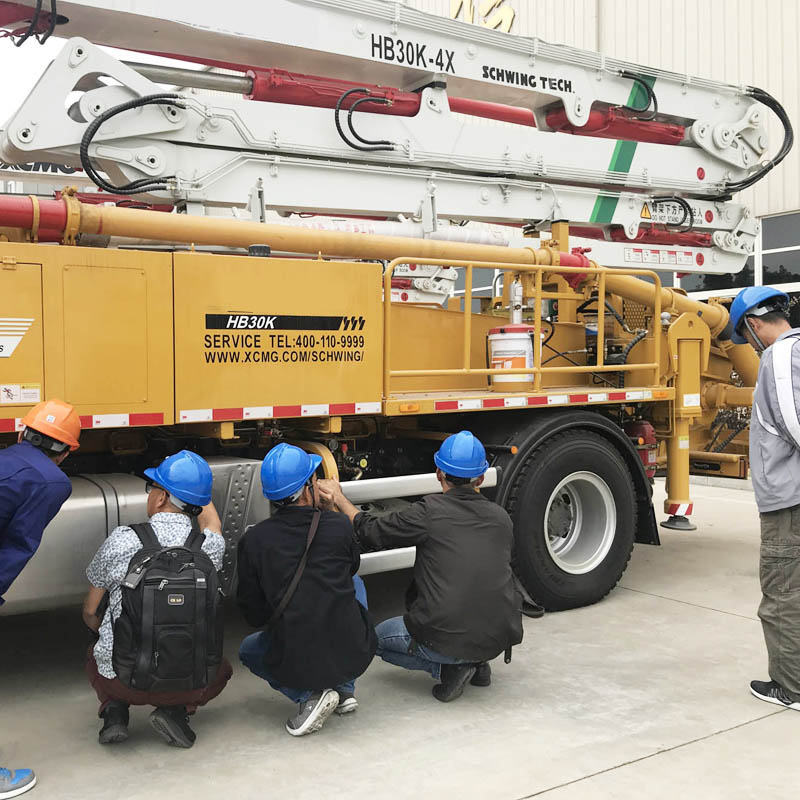

XCMG HB30K Truck Mounted Concrete Pump


Similar Product





<<  BACK TO LIST

Large diameter (230 mm) Φ, large displacement (100 / hour) pumping systems.

Material absorption can reach more than 85%.

Effectively reduce emissions with the reversing, vulnerability of longer life.

The pumping system adopts electric control reversing, reversing faster and the system impact smaller.

The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.



Description

Unit

Parameter value

Outline dimension

mm

10190×2500×3700

Overall weight

kg

20000

Chassis

Model


ZZ5207M521GC1

Max. speed

km/h

90

Max. grade-ability

%

35

Wheelbase

mm

5200

Tire


11.00R20

Engine

Model


MC07.28-30

Max. power

kW

203

Max. torque

N·m/(r/min)

1100/1200-1800

Displacement

L

6.87

Emission standard


Eruo III

Pumping system

Theoretical output

m³/h

100

Concrete pumping pressure

MPa

8

Theoretical pumping times

Time/min

25

Delivery cylinder diameter ×stroke

mm

φ230×1600

Max. diameter of pumping concrete

mm

40

Filling height

mm

1550

Concrete slump range

cm

8~23

Placing boom

Reach height

m

29.6

Reach depth

m

18

Slewingradius

m

25.7

Slewing angle

°

±270

Unfolding angle of the 1st section

°

90

Unfolding angle of the 2nd section

°

180

Unfolding angle of the 3rd section

°

250

Unfolding angle of the 4th section

°

235

Unfolding angle of the 5th section

°


Stabilizer span

Longitudinal span of stabilizer

mm

6100

Transverse span of front stabilizer

mm

5555

Transverse span of rear stabilizer

mm

4810

Others

Lubrication method


Automatic lubrication

Control method


Manual/remote control

Volume of water box

L

400
