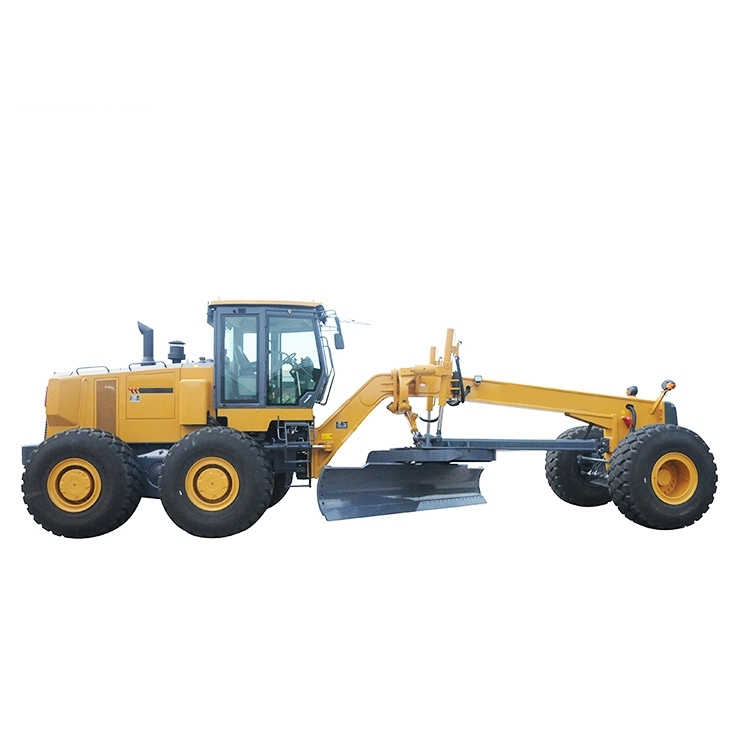

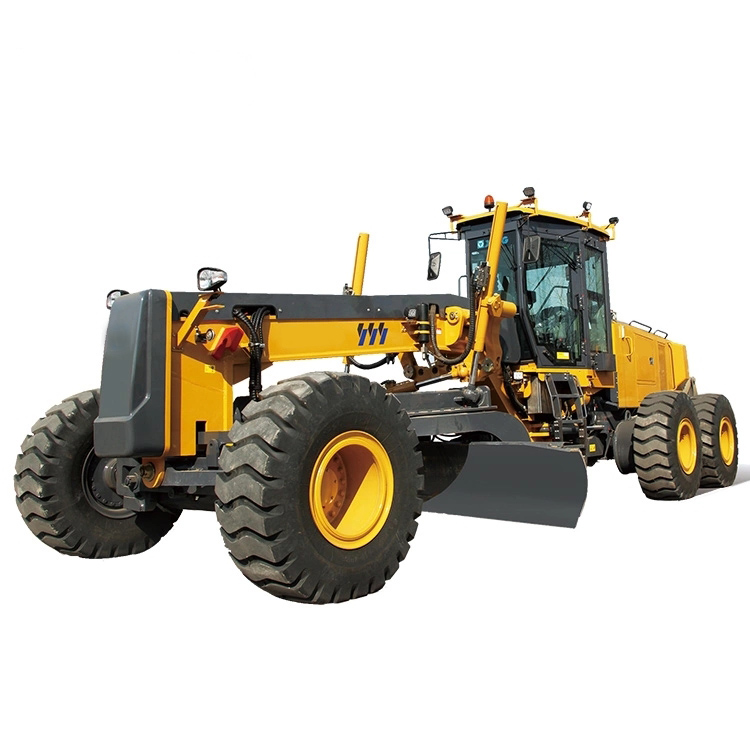

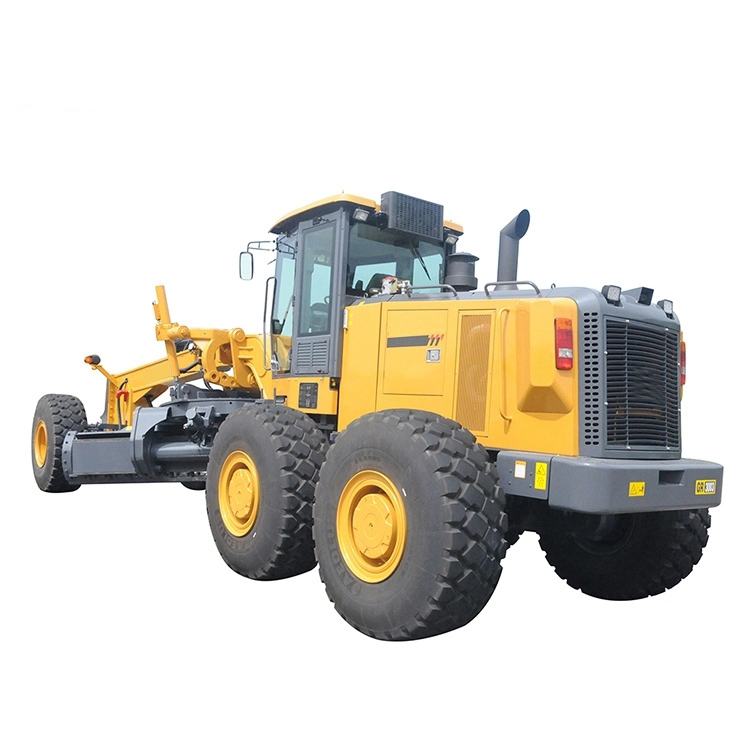

XCMG GR3005 Motor Grader


Similar Product





<<  BACK TO LIST

Item

GR3005

Basic parameters

Engine model

QSL8.9-C325-30

Rated power/speed

242kW/2100rpm

Overall dimension (standard)

10615x3280x3960

Total weight (standard)

28000kg

Tire specification

20.5-25

Ground clearance (front axle)

450mm

Space of front and rear axles

7617mm

Space of middle and rear wheels

1960mm

Performance
parameters

Forward velocity

5,8,11,19,23,40km/h

Reverse speed

5,11,23km/h

Tractive effort f=0.75

140kN

Maximum gradeability

30%

Tire inflation pressure

330kPa

Working system pressure

22MPa

Transmission pressure

/

Working parameters

Maximum steering angle of front wheel

±45°

Maximum slant angle of front wheel

±17°

Maximum oscillating angle of front axle

±15°

Maximum oscillating angle of equilibrium box

forwards15°, Reverse15°

Maximum steering angle of frame

±23°

Minimum turning radius

9m

Scrape knife

Maximum lift height

419mm

Maximum cutting depth

438mm

Maximum tilt angle

90°

Cutting angle

40°

Angle of revolution

360°

Length & chord height

4572x686mm

Oil filling amount

Coolant

50L

Fuel tank

480L

Engine

24L

Transmission

38L

Equilibrium box

186L

Drive alex

106L

Hydraulic oil

210L
