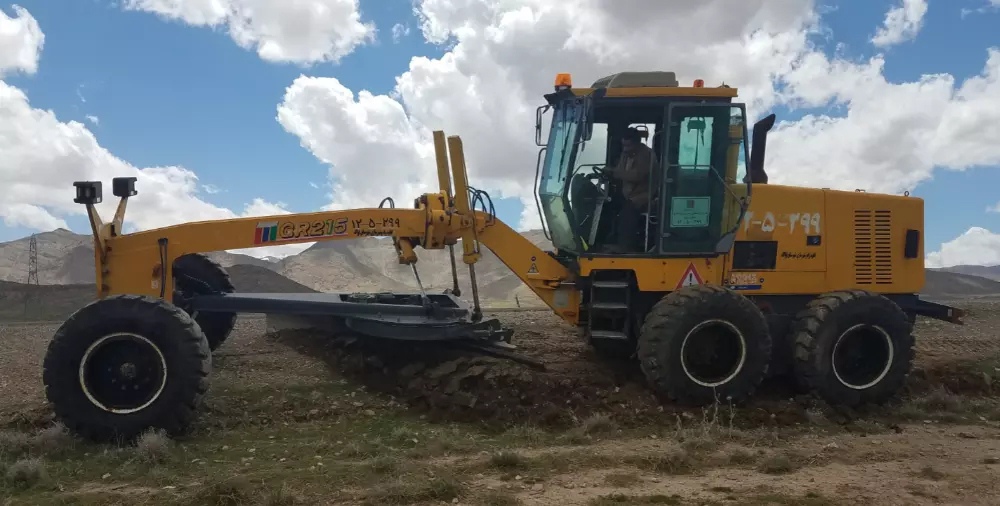

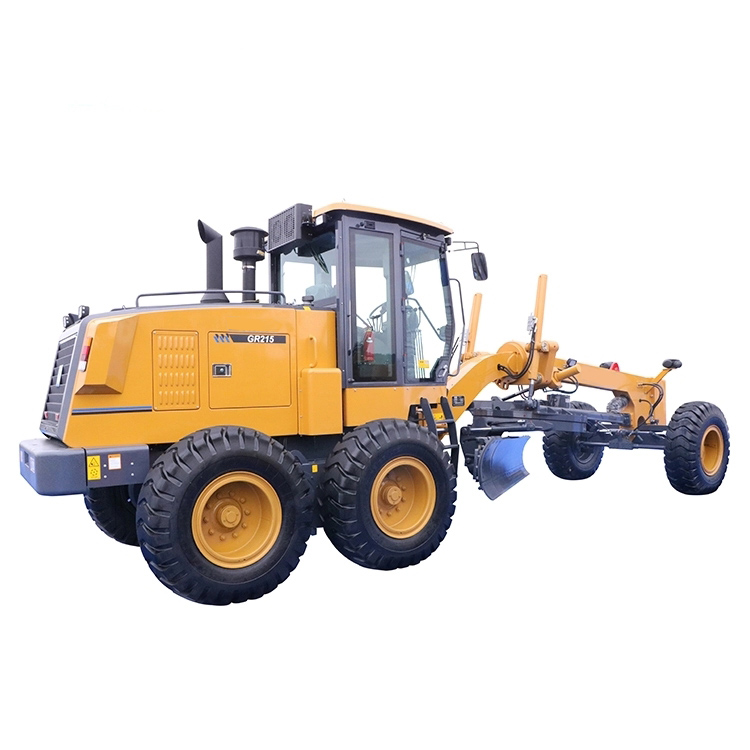

Home > Road machineryMotor GraderXCMG GR215 Motor Grader
Main parameters:
Operating weight :16 tons , Moldboard : 4270×610mm,

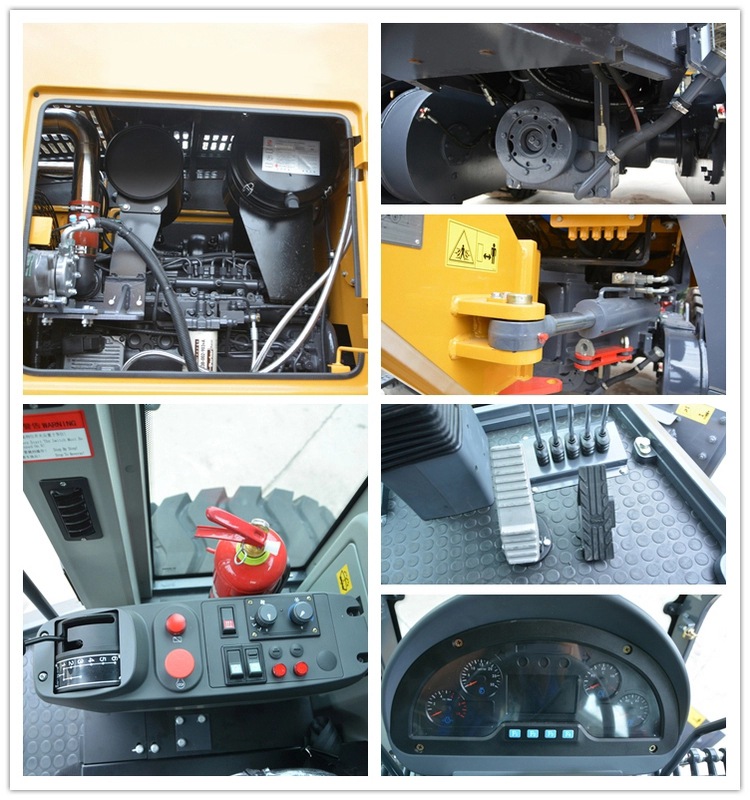

Detailed configuration:
Cummins 6CTA8.3 engine, 160kW
Meritor Driving axle ,
Advanced transmission or ZF transmission
Air conditioner driving cabin ,
Imported differential mechanism .
Advantages:
Strong power ,Comfortable driving environment .
Adopt imported hydraulic parts .Great working performance .Energy-saving and noise-reducing.
Optional parts:
Front mouldboard ,
Rear scarifier ,
Shovel blade
Configuration for low temperature area .
Item | Unit | Specification |
Basic specification | ||
Engine manufacture | Dongfeng Cummins | |
Engine model | 6CTA8.3-C215 | |
Rated power/ speed | kW/rpm | 160/2200 |
Operating weight(Standard) | kg | 16100 |
Tire size | 17.5-25 | |
Min. ground clearance | mm | 430 |
Wheel track | mm | 2156 |
Distance between front and rear axles | mm | 6219 |
Distance between middle and rear wheels | mm | 1538 |
Performance specification | ||
Travelling speed, forward | km/h | 5、8、11、19、23、38 |
Travelling speed, reverse | km/h | 5、11、23 |
Tractive effort f=0.75 | kN | 113.8 |
Max. graddeability | ≥30% | |
Tire inflation pressure | kPa | 260 |
Working hydraulic | Mpa | 18 |
Transmission pressure | Mpa | 1.3-1.8 |
Operating specification | ||
Maximum steering angle of front wheel | ±50° | |
Maximum slant angle of front wheel | ±17° | |
Maximum oscillating angle of front axle | ±15° | |
Maximum oscillating angle of equilibrium box | Front15°,Rear15° | |
Maximum steering angle of frame | ±27° | |
Minimum turning radius | m | 7.3 |
Blade Max. lifting | mm | 28-70 |
Blade Max. depth of cutting | mm | 360 |
Blade moldboard width×height | mm | 3965X610/4270X610 |
