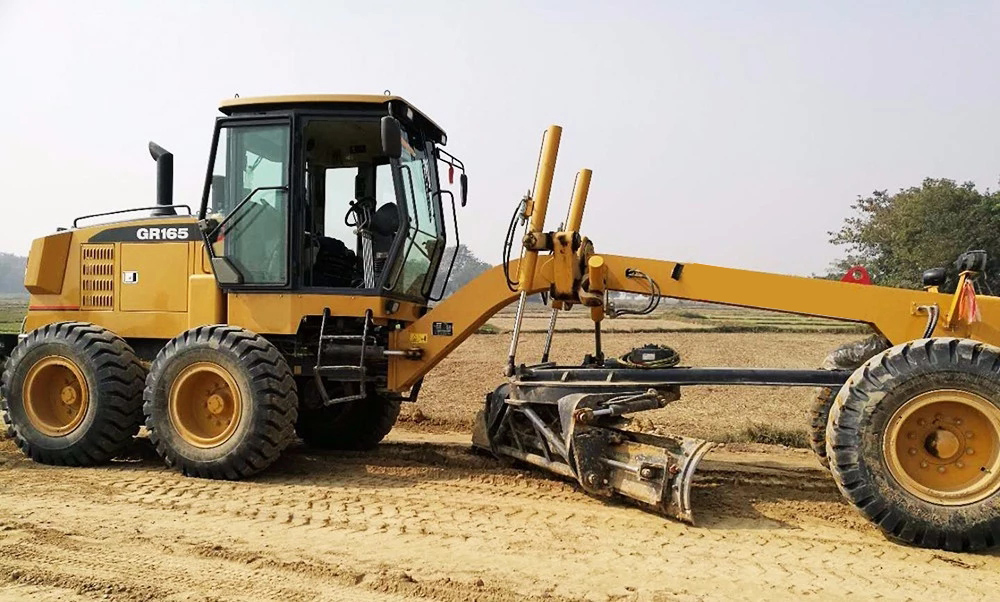

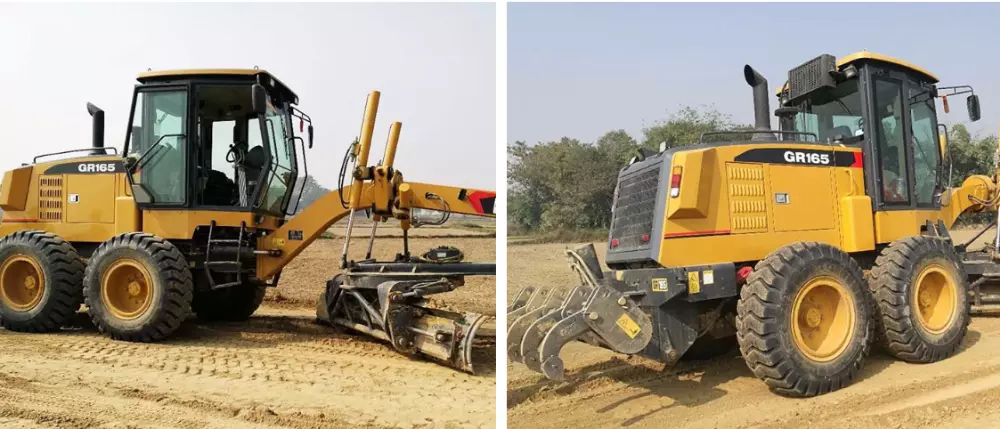

Home > Road machineryMotor Grader XCMG GR165 Motor Grader
Main parameters:
Operating weight :15 tons
Moldboard : 3965×610mm
Detailed configuration
Cummins 6BTA5.9-C180-II engine130kW
Meritor driving axle
Air Conditioner driving cabin
Imported differential mechanism
Advantages
Strong power ,Comfortable driving environment
Adopt imported hydraulic parts
Great working performance
Optional parts
Front mouldboard ,
Rear scarifier ,
Shovel blade
Item | Unit | Specification | |
Basic specification | |||
Engine manufacture | Dongfeng Cummins | ||
Engine model | 6BTA5.9-C180-Ⅱ | ||
Rated power/speed | kW/rpm | 130/2200 | |
Overall dimension(standard) | mm | 8900 x 2625 x 3470 | |
Total weight(standard) | kg | 15000 | |
Tire specification | 17.5-25 | ||
Ground clearance | mm | 430 | |
Tread | mm | 2156 | |
Space of front and rear axles | 6219 | ||
Performance specification | |||
Forward velocity | km/h | 5、8、11、19、23、38 | |
Reverse speed | km/h | 5、11、23 | |
Tractive effort f=0.75 | kN | 77 | |
Maximum gradeadbility | % | 25 | |
Inflation pressure of tires | kPa | 260 | |
Working system pressure | MPa | 16 | |
Transmission pressure | MPa | 1.3-1.8 | |
Working parameters | |||
Maximum steering angle of front wheels | ° | ±50 | |
Maximum slant angle of front wheel | ° | ±17 | |
Maximum oscillating angle of front axle | ° | ±15 | |
Maximum oscillating angle of equilibrium box | ° | ±15 | |
Maximum steering angle of frame | ° | ±27 | |
Maximum turning radius | m | 7.3 | |
Blade | Maximum lifting height | mm | 450 |
Maximum shoveling depth | mm | 500 | |
Maximum lateral inclination angle | ° | 90 | |
Cutting angle | ° | 28-70 | |
Slewing angle | ° | 360 | |
Length x chord height | mm | 3660 x 610 | |
Oil filling amount | |||
Coolant | L | 50 | |
Fuel tank | L | 280 | |
Engine | L | 24 | |
Transmission | L | 38 | |
Hydraulic oil | L | 110 | |
Drive axle | L | 28 | |
Balancing box | L | 46 |
