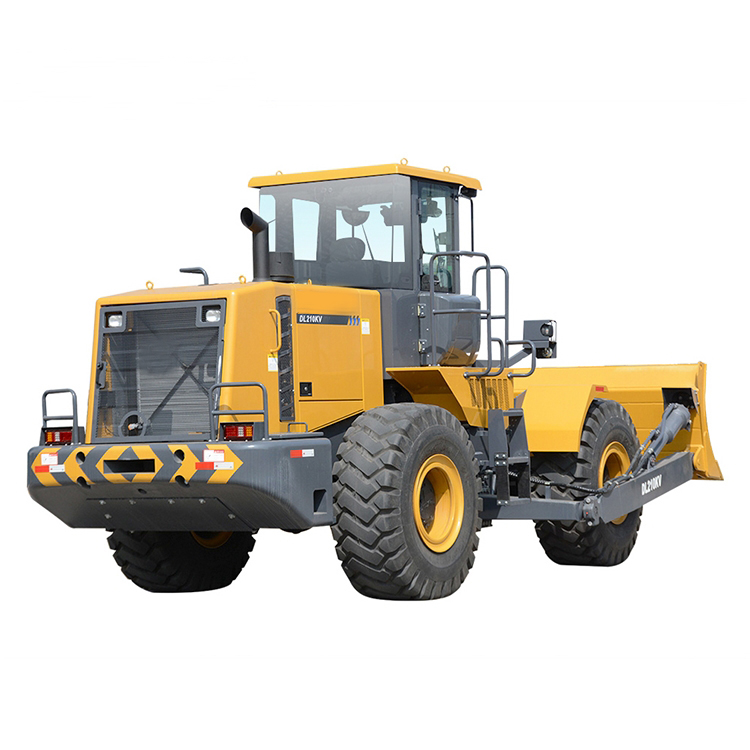

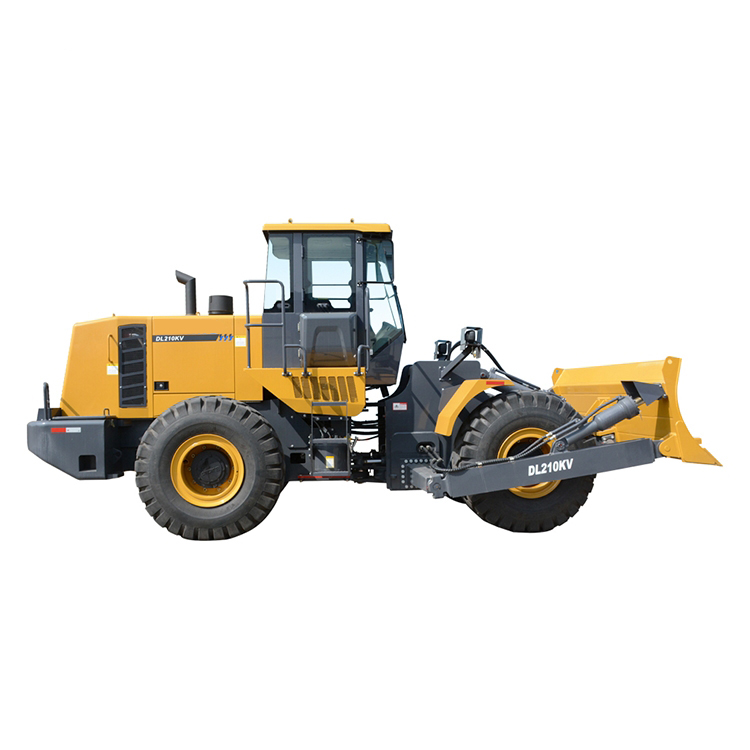

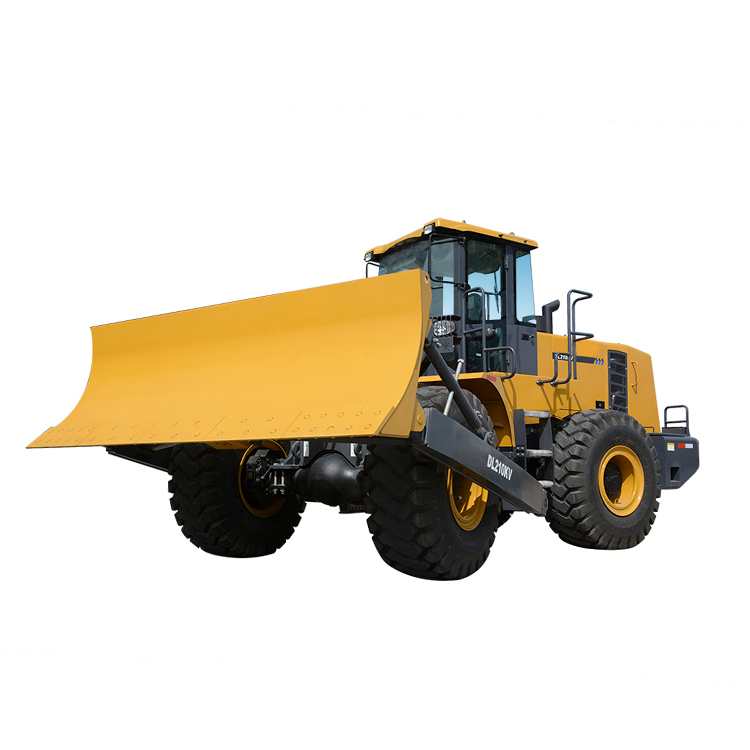

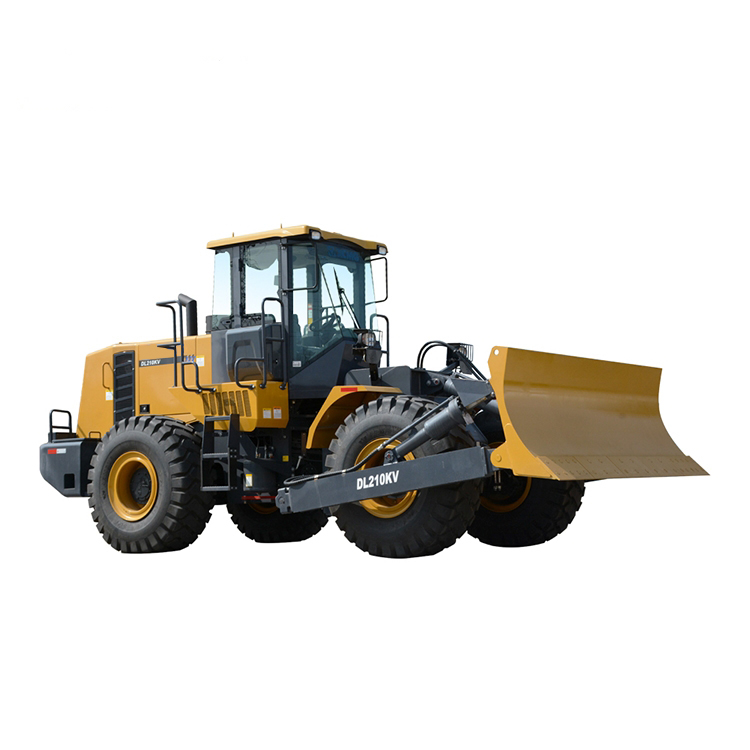

Home > Earth moving machineryBulldozerXCMG DL210KV Wheel Bulldozer
The high reliability power shift transmission, the stable hydraulic torque converter, and two-stage spur gear final drive feature high power transmission efficiency.
The engine can run normally and reliably under all load conditions and all hot environments required by the user, without overheating.
It can realize the automatic diagnosis and whole-process monitoring of the malfunctions. The integrally injection molded instrument panel integrates the A/C, electric devices, and instruments, featuring beautiful appearance and high grade.
Description | Unit | Specifications |
Dozer Max lift heigh | mm | 1000 |
Dozer Max.cutting depth | mm | 380 |
Dozer Max.titing range | mm | 500 |
Max.drawing force | Kn | 136 |
Articulation angle | . | 35 |
Min.turn radius | mm | 6600 |
Climb ability | . | 25 |
Wheel base | mm | 3410 |
Tread | mm | 2250 |
Speeds 1st (F/R | Km/h | 11.5/16.5 |
2st (F/R | Km/h | 38 |
Engine Model | WD10G220E23 | |
Rated power/speed | 178kw/2000r/min | |
LxWxH | mm | 7430*3354*3515 |
Operating weight | t | 18.3 |
Tires | 23.5-2.5 |
