Home > Hoisting machineryTruck craneXCM-G Truck Crane XCT35
Main parameters:
Max. rated total lifting capacity:35T
Basic boom: 10.1M
Max. main boom:41M
Max.main boom+jib:56.8M
Main configuration:
SC9DF290.1Q4/D10.31-40(213/228kw)
Wire rope
Hirschmann PAT
Heater
Full dimension cab

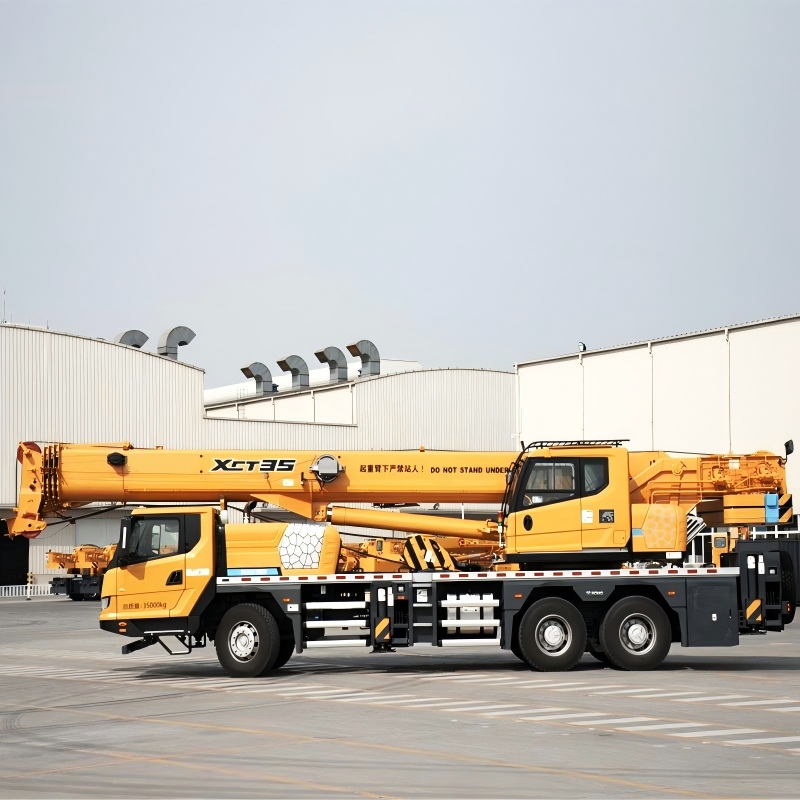

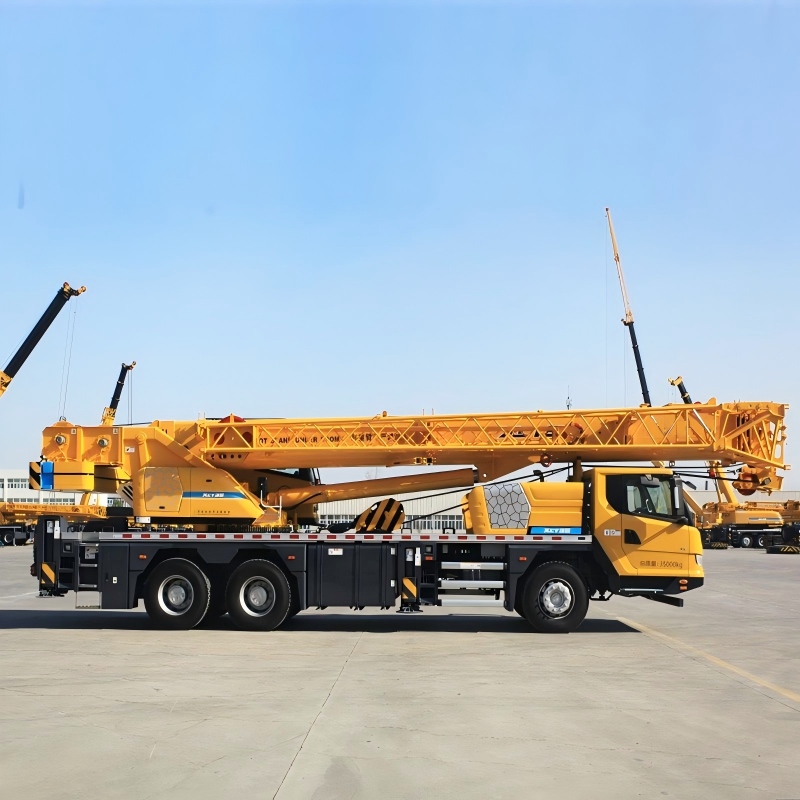

XCM-G XCT35 is the king of the three bridge performance.To the level of the car-level workers interactive system, to provide users with a comfortable intelligent operating experience. new generation of appearance, user-friendly design, user operation more comfortable and convenient.
Item | Unit | Specification |
Dimensions | ||
Overall length | mm | 13065 |
Overall width | mm | 2750 |
Overall height | mm | 3540 |
Wheel base | mm | 1900+1350 |
Wheel track | mm | 2308/2079 |
Weight | ||
Total weight in travel | Kg | 35000 |
Axle load | Kg | 9000+13000×2 |
Power | ||
Engine model | SC9DF290.1Q4/D10.31-40 | |
Engine rated power | kw/(r/min) | 213/1900 228/1900 |
Engine rated torque | N.m/(r/min) | 1400/1400 1390/（1200-1500） |
Travel | ||
Travelling | ||
Max. travel speed | km/h | 90 |
Min. stable travel speed | km/h | 2.5～3 |
Turning | ||
Min. turning diameter | m | 22 |
Min. turning diameter(boom head) | m | 28.4 |
Min. ground clearance | mm | 260 |
Approach angle | ° | 19（18）/12 |
Departure angle | ° | 13.5 |
Braking distance | m | ≤36.7（The speed is 60km/h) |
Fuel consumption for 100km | L | 32 |
Lifting performance | ||
Max. total rated lifting capacity | t | 35 |
Min. rated working radius | m | 3 |
Base boom Max. load moment | kN·m | 1458 |
Turning radius at turntable tail | mm | 3600 |
Outrigger | ||
Longitudinal distance span | m | 5.975 |
Lateral distance span | m | 7 |
Max. lifting height | ||
Base boom | m | 10.1 |
Fully extended boom | m | 41 |
Fully extended boom＋jib | m | 56.8 |
Fully extended boom＋jib+ extension | - | |
Boom length | ||
Base boom | m | 10.9 |
Fully extended boom | m | 42 |
Fully extended boom＋jib | m | 58 |
Fully extended boom＋jib+ extension | m | - |
Working speed | ||
Max. swing speed | r/min | 2.5 |
Lifting speed | ||
Main winch | s | 130 |
Vice winch | s | 130 |
Boom full extension time | ||
extension | s | 80 |
contraction | s | 90 |
Boom elevating time | ||
Lifting | s | 40 |
Dropping | s | - |
Horizontal | ||
Stretching | s | 30 |
Retracting | s | 20 |
Vertical | ||
Stretching | s | 35 |
Retracting | s | 25 |
