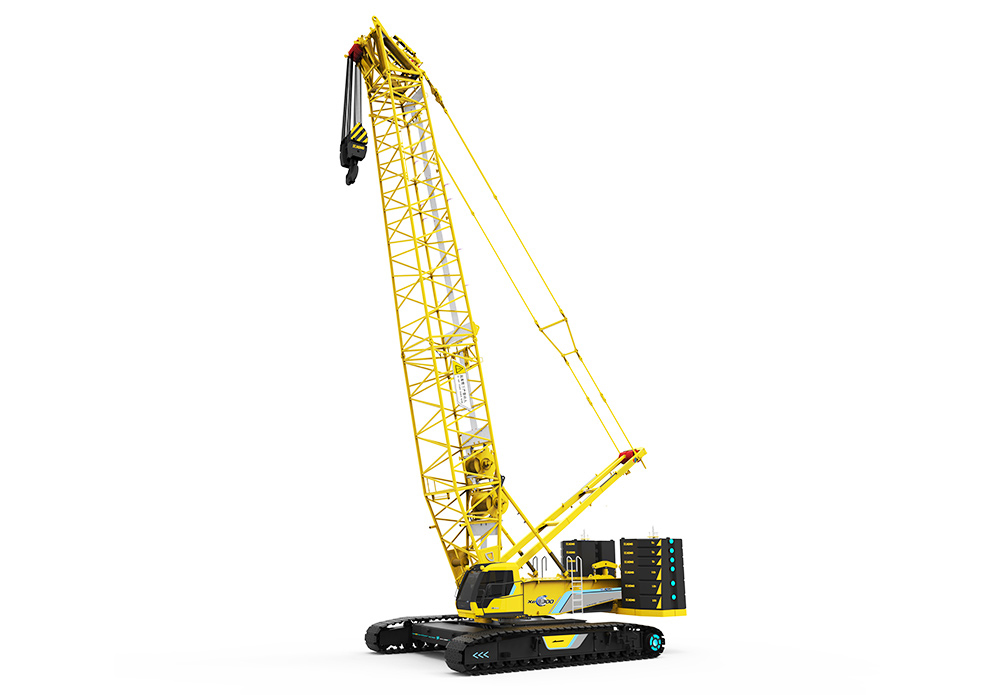

Crawler crane XGC300

Location: Xuzhou, China

Similar Product





<<  BACK TO LIST

XGC300 crawler crane adopts modular design concept completely in accordance with global prevailing laws and regulations in road transport and realizes integrated transportation of components combination of tower jib front and rear strut, tower jib butt assembly, basic fixed jib (with strut) and other parts. With the max. weight of single transport component 45T (if dismantling can be less than 37t), width 3m and height 3.2m, it has the best road transportation solution program.



Performance Characteristics:

1. Super-powerful lifting performance

Combining the technology of integrated large chassis design with low center of gravity with optimized lightweight boom design, with advanced 93m boom + 66m tower jib XGC260 has better stability, stronger lifting capacity, wider operation range and higher lifting height.
The max. lifting capacity of TBM working condition is 166.2t, one XGC260 can realize the turning and installation of TBM equipment within diameter of 8m.

2. The lowest cost in operation and transportation

With optimized boom section combination, one boom structure set will realize two working conditions: TBM jib, wind power jib working condition, which greatly improve Crane universality and interchangeability of components, and reduce transport components.

3. Unique appearance and used-friendly design

The bionic design of the cab makes operation more convenient and comfortable with more novel fashion appearance and simulation of human body interior software simulation.
The crane reflects excellent overall quality by interacting cab with streamline turntable, delicate counterweight and “X" type coating.



Item

Unit

Specification

Lifting performance

Max. total rated lifting capacity

t

300

Fixed jib Max. lifting capacity

t

130

Luffing jib Max. lifting capacity

t

135

Max. load moment

t.m

1837

Tower jib Max. lifting capacity

t

135

Single block Max. lifting capacity

t

28

Special jib Max. lifting capacity

t

172.2

Dimensions

Main boom length

m

24~96

Main boom luffing angle

°

-3~85

Fixed jib length

m

9~42

Tower jib length

m

24~66

Max. dimension of single unit(basic machine)in travel configuration(Lx W x H)

m

13.5×3.0×3.3

Fixed jib installation angle

°

10、30

Special jib length

m

9~12

Working speed

Winch Max. single line speed

m/min

110

Boom luffing gear Max. single line speed

m/min

2×42.5

Vice jib luffing gear Max. single line speed

m/min

117

Max. slewing speed

r/min

1

Max. travel speed

km/h

1

Grade ability

%

30

Mean ground pressure

MPa

0.13

Tower jib luffing gear Max. single line speed

m/min

117

Lifting device luffing gear Max. single line speed

m/min

-

Power

Engine model


WP12

Engine rated power

kW

338

Discharge


Weight

Total weight

t

276(main lifting hook,24m boom)

Max. single unit weight for transportation

t

45(Disassembly can be less than 37 tons)
