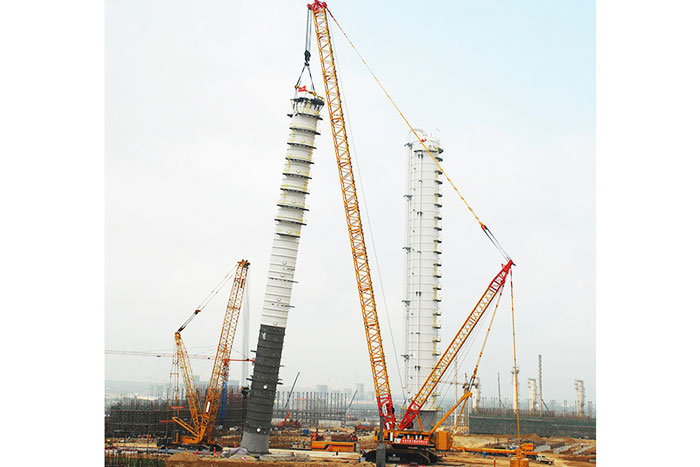

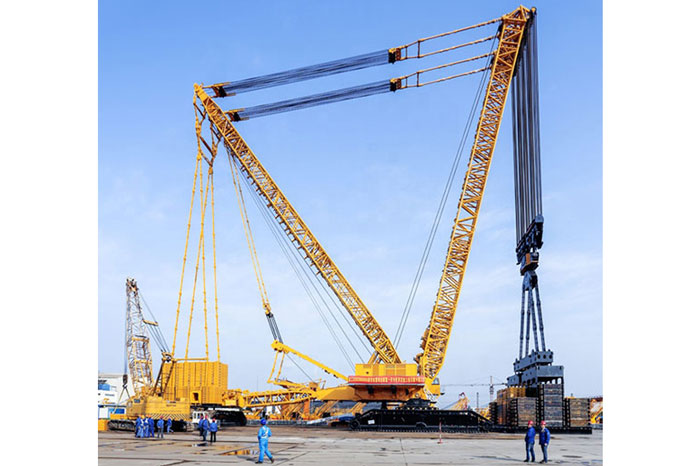

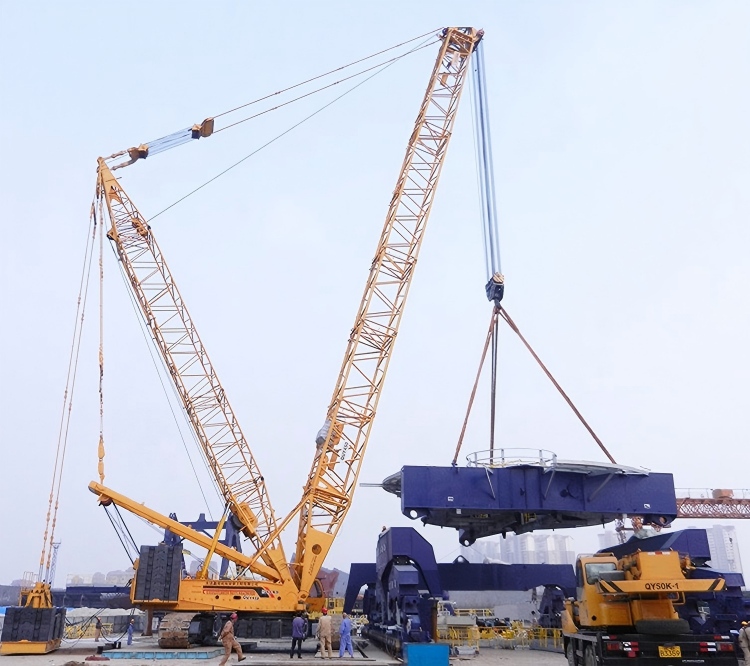

XGC800 crawler crane is safe and reliable, convenient to assemble/disassemble and comfort to operate. It is equipped with advanced technologies such as stepless luffing. Under the premise of conventional function satisfaction, it can be used to realize the efficient installation of wind power equipment whose power is less than 3MW.
Performance Characteristics:
Under the condition of same output torque, 4-roller drive travel unit features smaller diam., stronger output traction, and powerful walking.
Boom head exchangeable and combined-type pulley block can be generally used for boom, tower jib and special jib, reduced the cost of customer use and maintenance of the crane.
Main unit uses outrigger cylinder to support the crane for loading and unloading, track frame uses its mast to form mast derrick(Optional) for self assembly/disassembly, boom sections use power trolley for pin shaft connection, hydraulic system uses hydraulic cylinder for assembly; boom and turntable, mast and turntable， hoist winch and turntable, luffing winch and turntable, track frame and car-body etc. use self hydraulic system and hydraulic cylinder for pin shaft connection, removable catwalks, ladders and etc., can be lifted and removed easily by two men.
Use of the power from superlift luffing winch, design of boom special lifting devices for superlift working condition, use of superlift mast derrick and a auxiliary trolley to lift and install the boom, greatly improved lifting operation efficiency.
Item | Unit | Specification |
Lifting performance | ||
Max. total rated lifting capacity | t | 800 |
Fixed jib Max. lifting capacity | t | 550 |
Luffing jib Max. lifting capacity | t | 378 |
Max. load moment | t.m | 10416 |
Tower jib Max. lifting capacity | t | 378 |
Single block Max. lifting capacity | t | 50 |
Special jib Max. lifting capacity | t | 145 |
Dimensions | ||
Main boom length | m | 24～138(H）/30～150（L） |
Main boom luffing angle | ° | -3～85° |
Fixed jib length | m | 12 |
Tower jib length | m | 30～102 |
Max. dimension of single unit(basic machine)in travel configuration(Lx W x H) | m | 11.8×3.44×2.7 |
Fixed jib installation angle | ° | 15 |
Special jib length | m | 12 |
Working speed | ||
Winch Max. single line speed | m/min | 145 |
Boom luffing gear Max. single line speed | m/min | 2×55 |
Vice jib luffing gear Max. single line speed | m/min | - |
Max. slewing speed | r/min | 0.6 |
Max. travel speed | km/h | 1 |
Grade ability | % | 30 |
Mean ground pressure | MPa | 0.17 |
Tower jib luffing gear Max. single line speed | m/min | 130 |
Lifting device luffing gear Max. single line speed | m/min | 135 |
Power | ||
Engine model | OM502LA | |
Engine rated power | kW | 480 |
Discharge | EURⅢ | |
Weight | ||
Total weight | t | 635(main lifting hook,24m boom) |
Max. single unit weight for transportation | t | 54 |
