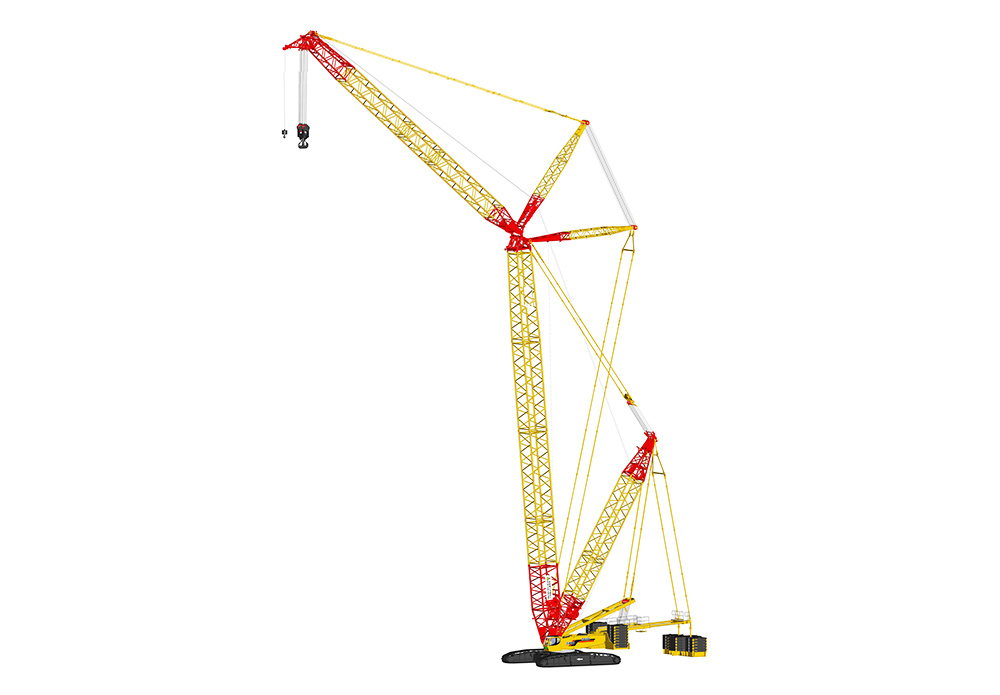

XGC650 is a new generation crawler crane which is successfully developed by XCMG. The crane of this model has been improved from the aspects of assembly and disassembly convenience, operation comfort and lifting capacity, safer and more reliable. Equipped with various advanced technologies such as mast one-key erecting and stepless luffing, the crane’s performance is superior to that with other domestic brands in various aspects.
Under the premise of conventional function realization, wind power working condition has been specially developed for XGC650 to meet the installation requirement of 2.0MW~3.0MW wind power equipment.
Performance Characteristics:
Uperlift counterweight uses stepless luffing, and equipped with superlift counterweight calculation software. Customer in their practical application can select suitable superlift counterweight weight and radius according to their lifting planning, and at the same time the superlift counterweight is ensured clear off the ground for stepless luffing.
The goose head is specially designed for wind power lifting, with features of light-weight, strong lifting ability, and the max. lifting load without superlit is up to 165t, the max. boom length is up to 147m+12m.
The total vehicle weight is in the advanced level of the same tonnage, and the lifting performance is in the international advanced level, main performance index such as the max. load moment, main boom length, lifting height and et., reach or even exceed the international advanced level. Especially the mobile superlift system greatly improve the adaptability and convenient for the crane.
Main hoist winch uses φ28mm high-strength wire rope to ensure powerful single line pull, efficient reduction of parts of line, and improve load lifting efficiency.
Item | Unit | Specification |
Lifting performance | ||
Max. total rated lifting capacity | t | 650 |
Fixed jib Max. lifting capacity | t | - |
Luffing jib Max. lifting capacity | t | 340 |
Max. load moment | t.m | 7848 |
Tower jib Max. lifting capacity | t | 340 |
Single block Max. lifting capacity | t | 30 |
Special jib Max. lifting capacity | t | 170 |
Dimensions | ||
Main boom length | m | 24～108(H)/66～138(L) |
Main boom luffing angle | ° | -3～85° |
Fixed jib length | m | - |
Tower jib length | m | 24～96 |
Max. dimension of single unit(basic machine)in travel configuration(Lx W x H) | m | 12×3.3×3.4 |
Fixed jib installation angle | ° | - |
Special jib length | m | 12 |
Working speed | ||
Winch Max. single line speed | m/min | 130 |
Boom luffing gear Max. single line speed | m/min | 2×56 |
Vice jib luffing gear Max. single line speed | m/min | - |
Max. slewing speed | r/min | 0.7 |
Max. travel speed | km/h | 1 |
Grade ability | % | 30 |
Mean ground pressure | MPa | 0.146 |
Tower jib luffing gear Max. single line speed | m/min | 100 |
Lifting device luffing gear Max. single line speed | m/min | 120 |
Power | ||
Engine model | OM502LA | |
Engine rated power | kW | 420 |
Discharge | EURⅢ | |
Weight | ||
Total weight | t | 496（main lifting hook,24m boom） |
Max. single unit weight for transportation | t | 71 |
