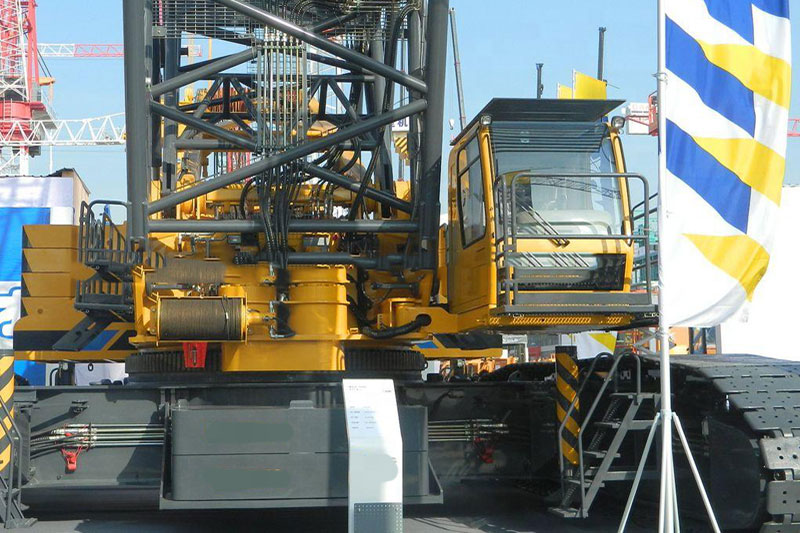

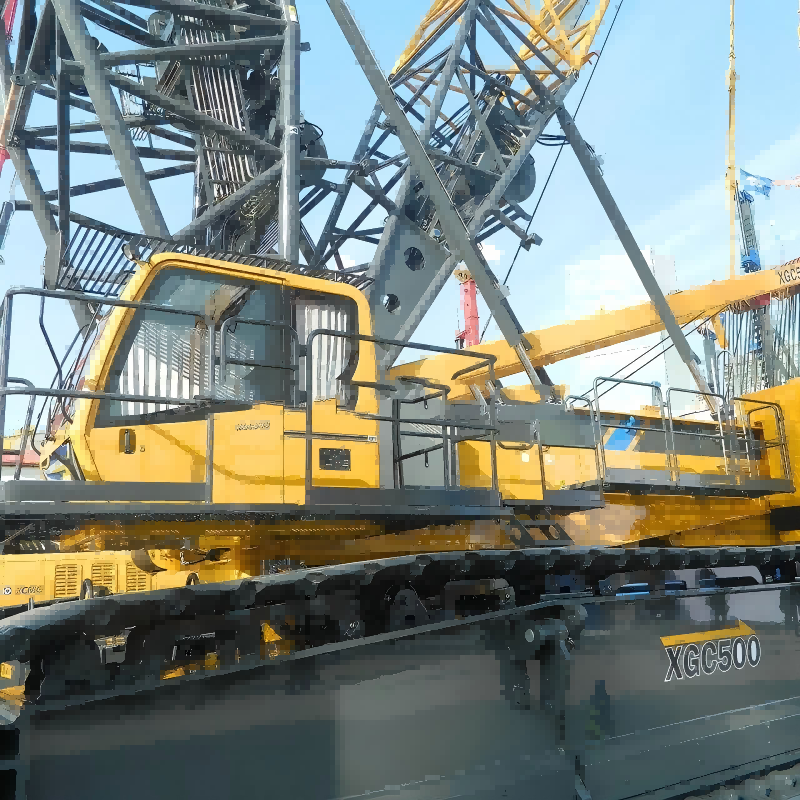

Home > Hoisting machineryCrawler craneCrawler crane XGC500
Perfect self-assembly/disassembly functions can achieve self- assembly/ disassembly for track frame, turntable counterweight, and boom base.

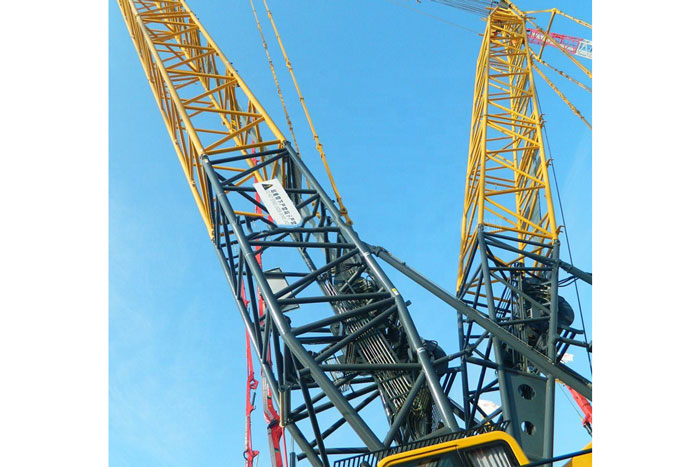

Luffing system integrated transport. 4-piece luffing system integrated transport of mast main luffing system, super-lift mast luffing system, and tower jib. * Use of particular pendant connection design to make pendant assembly/ disassembly more convenient. Meanwhile pendant can be transported with boom sections, to save boom transition time.
All counterweights on the same platform products have the unified specifications, truly realize common use and interchangeability for the parts.
Sprocket-style travel with good coupling engagement; 4-drive reducer for front/rear drive unit, improve the whole vehicle travel, steering and climbing ability.
For the demand of wind power installation and maintenance, wind power jib can meet the 2.0~2.5 MW below wind turbine lifting demand.
Item | Unit | Specification |
Lifting performance | ||
Max. total rated lifting capacity | t | 500 |
Fixed jib Max. lifting capacity | t | - |
Luffing jib Max. lifting capacity | t | 230 |
Max. load moment | t.m | 6267 |
Tower jib Max. lifting capacity | t | 230 |
Single block Max. lifting capacity | t | 26 |
Special jib Max. lifting capacity | t | 116 |
Dimensions | ||
Main boom length | m | 24～96(H)/48～126(L) |
Main boom luffing angle | ° | -3～85° |
Fixed jib length | m | - |
Tower jib length | m | 24～84 |
Max. dimension of single unit(basic machine)in travel configuration(Lx W x H) | m | 11.5×3.45×3.45 |
Fixed jib installation angle | ° | - |
Special jib length | m | 7 |
Working speed | ||
Winch Max. single line speed | m/min | 130 |
Boom luffing gear Max. single line speed | m/min | 2×53 |
Vice jib luffing gear Max. single line speed | m/min | - |
Max. slewing speed | r/min | 0.7 |
Max. travel speed | km/h | 1 |
Grade ability | % | 30 |
Mean ground pressure | MPa | 0.132 |
Tower jib luffing gear Max. single line speed | m/min | 106 |
Lifting device luffing gear Max. single line speed | m/min | 110 |
Power | ||
Engine model | OM460LA | |
Engine rated power | kW | 360 |
Discharge | EURⅢ | |
Weight | ||
Total weight | t | 375（main lifting hook，19m boom） |
Max. single unit weight for transportation | t | 55 |
