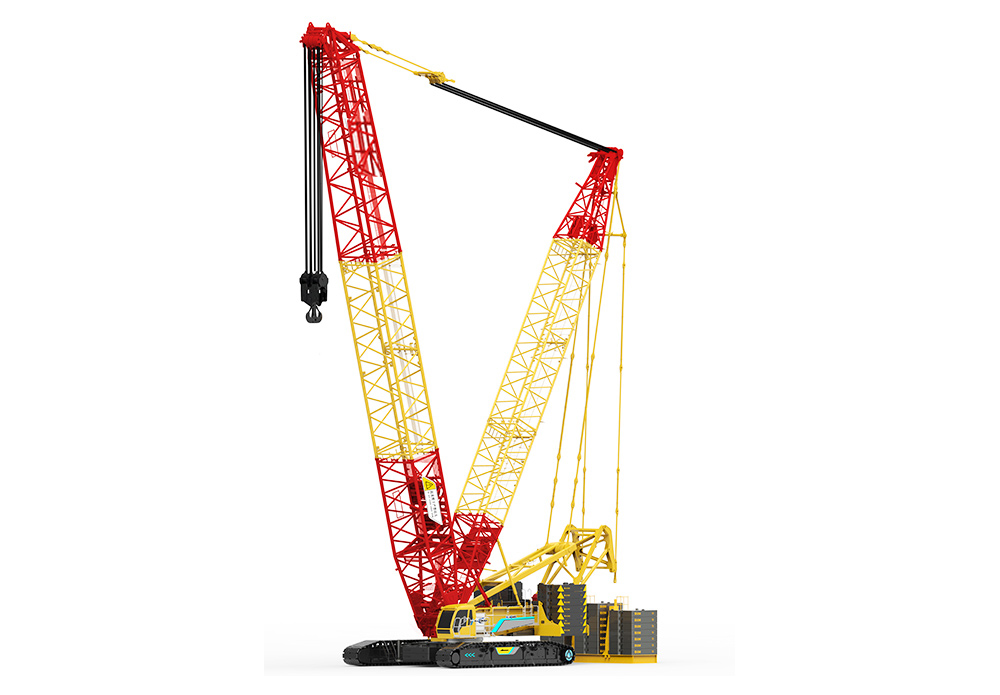

Home > Hoisting machineryCrawler craneCrawler crane XGC400

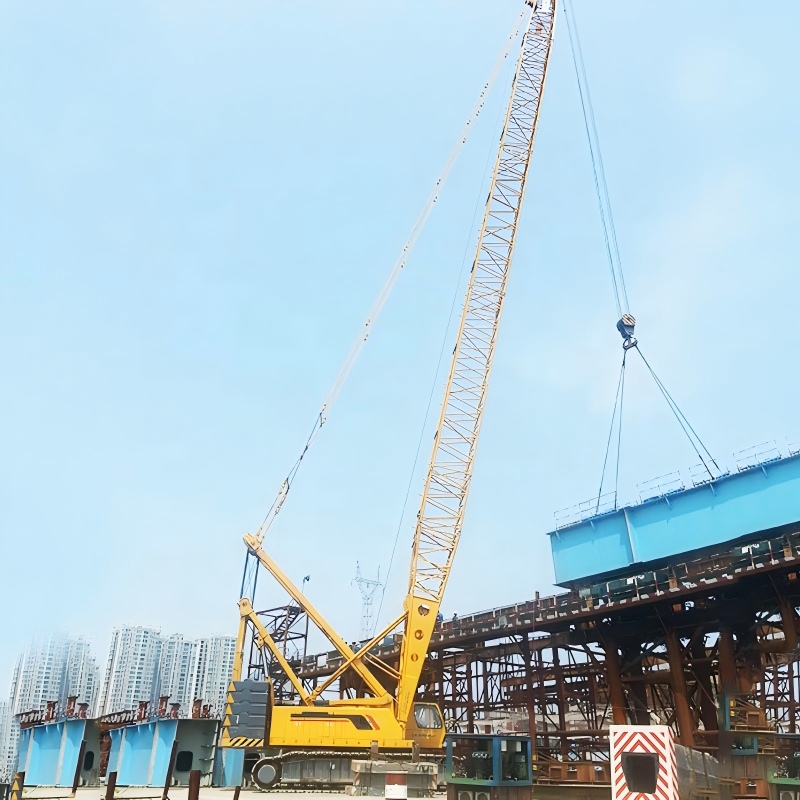

With powerful lifting performance and operation height, the max. lifting moment of 5,157 t.m, and the longest boom and tower jib length in the industry, XGC400 is mainly used in national projects of petroleum and chemical engineering, wind power construction and nuclear power construction.
Performance Characteristics:
This four-driver travel gear features large steering force, strong climbing power and flexible movement.
We are the first to design special 2WM win power jib, and the wind power jib integration system using self-folding pendants to save preparation time of disassembly and transport. Combined with special wind power double lifting balance hook block, it improves operation efficiency as well as ensures double lifting balance and improves operation accuracy.
Counterweights on the three parts of crane (car-body counterweight, turntable counterweight, and superlift counterweight) are with the same dimension, so they are completely interchangeable, to optimize the use of crane counterweights combined with superlift counter-weight optimization program.
Item | Unit | Specification |
Lifting performance | ||
Max. total rated lifting capacity | t | 400 |
Fixed jib Max. lifting capacity | t | - |
Luffing jib Max. lifting capacity | t | 185 |
Max. load moment | t.m | 5157 |
Tower jib Max. lifting capacity | t | 185 |
Single block Max. lifting capacity | t | 26 |
Special jib Max. lifting capacity | t | 116 |
Dimensions | ||
Main boom length | m | 24～96(H)/42～126(L) |
Main boom luffing angle | ° | -3～85 |
Fixed jib length | m | - |
Tower jib length | m | 24～84 |
Max. dimension of single unit(basic machine)in travel configuration(Lx W x H) | m | 11.1×3×3.38 |
Fixed jib installation angle | ° | - |
Special jib length | m | 7 |
Working speed | ||
Winch Max. single line speed | m/min | 130 |
Boom luffing gear Max. single line speed | m/min | 2×51 |
Vice jib luffing gear Max. single line speed | m/min | - |
Max. slewing speed | r/min | 1.1 |
Max. travel speed | km/h | 0.9 |
Grade ability | % | 30% |
Mean ground pressure | MPa | 0.146 |
Tower jib luffing gear Max. single line speed | m/min | 100 |
Lifting device luffing gear Max. single line speed | m/min | 105 |
Power | ||
Engine model | QSM11 | |
Engine rated power | kW | 298 |
Discharge | EURⅢ | |
Weight | ||
Total weight | t | 350（main lifting hook，24m boom） |
Max. single unit weight for transportation | t | 48 |
