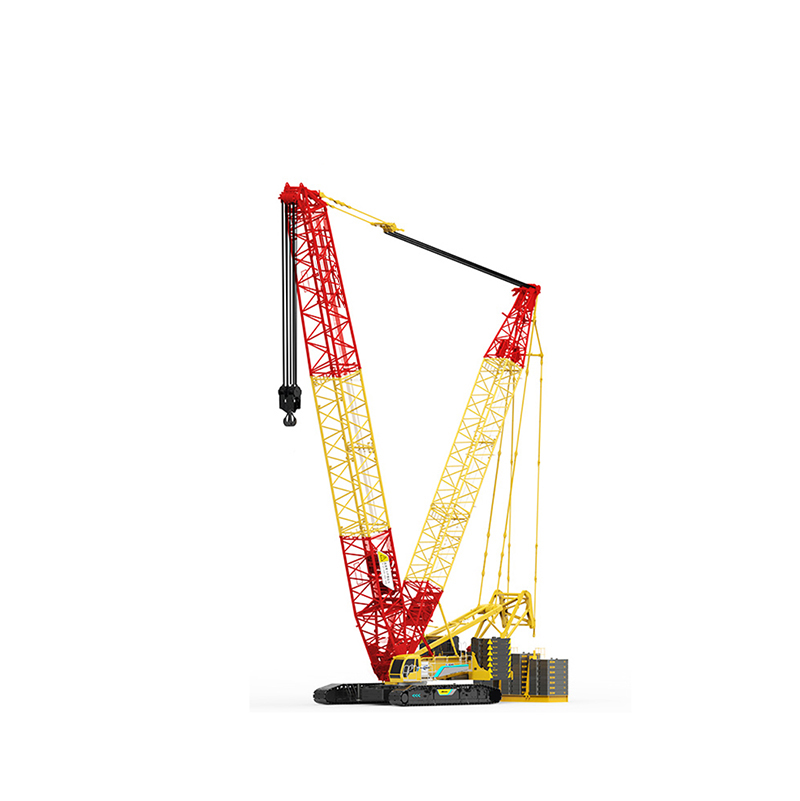

Home > Hoisting machineryCrawler crane Crawler crane XGC15000
Location: | Xuzhou, China |
Similar Product
Select the products
XGC15000 inherits the advantages of XCMG QUY series products, and successfully developed a new generation of crawler cranes. The products are safer, more reliable, and improve the disassembly and assembly convenience, handling comfort and lifting performance. With advanced technology such as stepless variable amplitude, all aspects of performance are better than domestic counterparts.
In product development, it has broken through many key technologies and laid a solid technological foundation for the development of larger tonnage products. Completely break the monopoly pattern of foreign mega crawler cranes in China's major construction equipment market, and accelerate the technical upgrading of China's construction crane industr
Item | Unit | Specification |
Lifting performance | ||
Max. total rated lifting capacity | t | 1000 |
Fixed jib Max. lifting capacity | t | - |
Luffing jib Max. lifting capacity | t | 477 |
Max. load moment | t.m | 14314 |
Tower jib Max. lifting capacity | t | 477 |
Single block Max. lifting capacity | t | 45 |
Special jib Max. lifting capacity | t | 629 |
Dimensions | ||
Main boom length | m | 30~120(H)/48~150(L) |
Main boom luffing angle | ° | -3~85 |
Fixed jib length | m | - |
Tower jib length | m | 30~108 |
Max. dimension of single unit(basic machine)in travel configuration(Lx W x H) | m | 15.5×3.4×3.12 |
Fixed jib installation angle | ° | - |
Special jib length | m | 18 |
Working speed | ||
Winch Max. single line speed | m/min | 130 |
Boom luffing gear Max. single line speed | m/min | 53×2 |
Vice jib luffing gear Max. single line speed | m/min | - |
Max. slewing speed | r/min | 0.9 |
Max. travel speed | km/h | 0.8 |
Grade ability | % | 30 |
Mean ground pressure | MPa | 0.156 |
Tower jib luffing gear Max. single line speed | m/min | 125 |
Lifting device luffing gear Max. single line speed | m/min | 130 |
Power | ||
Engine model | QSK23 | |
Engine rated power | kW | 641 |
Discharge | EURII | |
Weight | ||
Total weight | t | |
Max. single unit weight for transportation | t | 59 |
