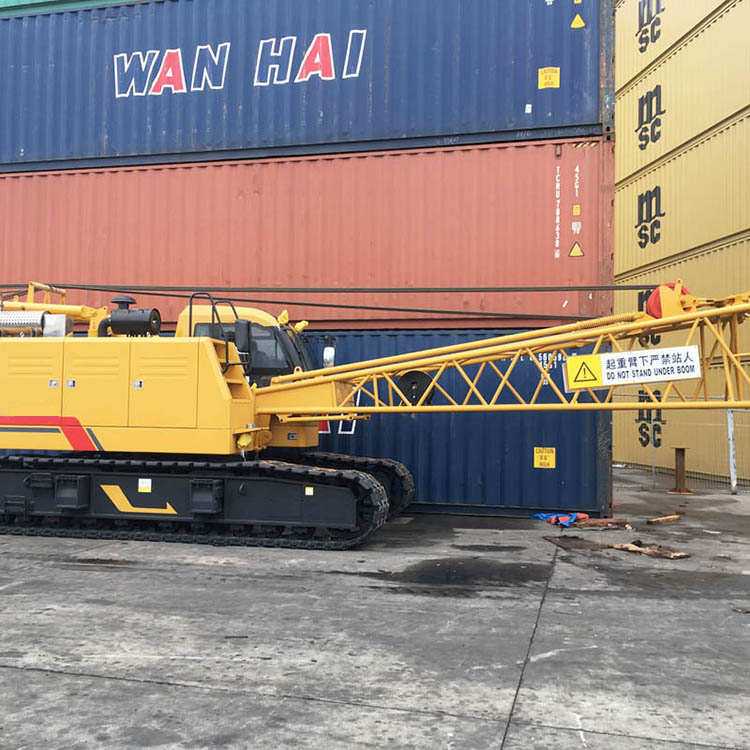

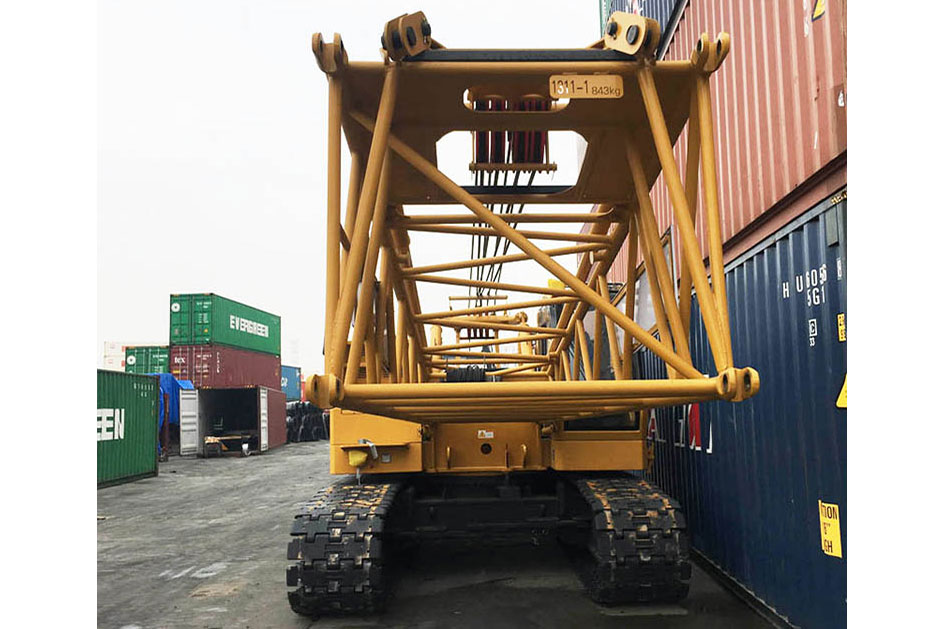

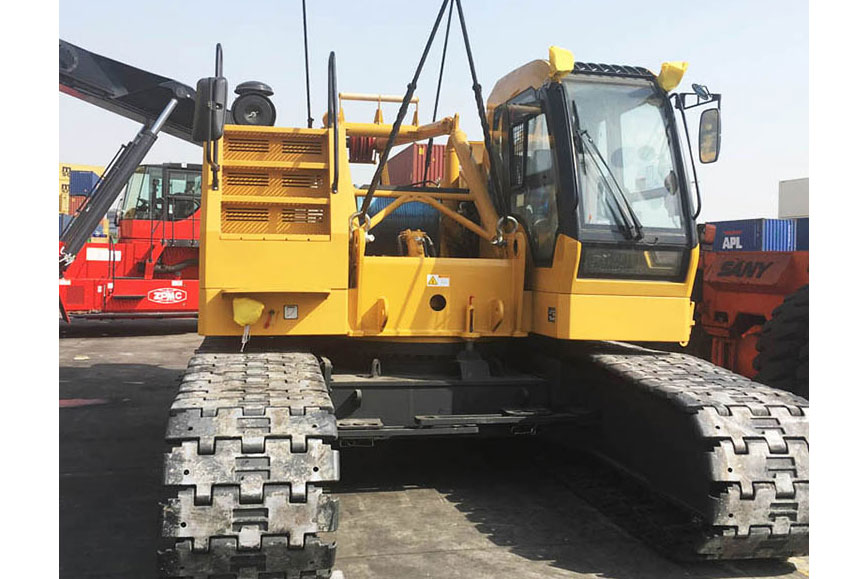

XGC150 is another new generation crawler crane developed by XCMG. Inheriting the features of high safety and high reliability from XCMG products, at the same time, during its development, this model pays more attention to the lifting improvement and cost control of the product, application and promotion of new technologies and structures, as well as standardization, seriation and universality of crane structures and components. In this way, the price performance ratio of this product has been improved substantially. Compared with the previous products, this crane has obvious breakthrough in disassembly transport and manufacturing.
Performance Characteristics:
1. High lifting performance
Boom max. lifting capacity/radius 150t/5m，boom max. load moment 927.4tm.Fixed jib max. lifting capacity 24t.
2. Optimized design of transport and assembly/ disassembly
* Fully equipped self-assembly/disassembly system (Optional) can easily achieve: rear counterweight self-assembly/disassembly, track frame self-assembly/disassembly, and boom base self-assembly/disassembly.
* Largest single unit transport weight is controlled within 30t, transport width not more than 3m, so as to meet the transport requirement of global accessibility. * Fixed jib can be three-piece integrated transport, and transport design of inserted boom sections, maximize the use of transport space, and save transport costs. 3. More optimized structural design * Superstructure is a large box-type structural design, with heavy load bearing capacity, light weight, and good rigidity. * Auxiliary hoisting winch is placed in boom base, with relaxed arrangement for turntable, easy maintenance.
Item | Unit | Specification |
Lifting performance | ||
Max. total rated lifting capacity | t | 150 |
Fixed jib Max. lifting capacity | t | 24 |
Luffing jib Max. lifting capacity | t | - |
Max. load moment | t.m | 927.4 |
Tower jib Max. lifting capacity | t | - |
Single block Max. lifting capacity | t | 13 |
Special jib Max. lifting capacity | t | - |
Dimensions | ||
Main boom length | m | 18～81 |
Main boom luffing angle | ° | 30～80 |
Fixed jib length | m | 13～31 |
Tower jib length | m | - |
Max. dimension of single unit(basic machine)in travel configuration(Lx W x H) | m | 11.0×3.0×3.3 |
Fixed jib installation angle | ° | 15、30 |
Special jib length | m | - |
Working speed | ||
Winch Max. single line speed | m/min | 110 |
Boom luffing gear Max. single line speed | m/min | 2×32 |
Vice jib luffing gear Max. single line speed | m/min | - |
Max. slewing speed | r/min | 1.5 |
Max. travel speed | km/h | 1.3 |
Grade ability | % | 30% |
Mean ground pressure | MPa | 0.102 |
Tower jib luffing gear Max. single line speed | m/min | - |
Lifting device luffing gear Max. single line speed | m/min | - |
Power | ||
Engine model | SC9DK280 | |
Engine rated power | kW | 206 |
Discharge | Ⅲ | |
Weight | ||
Total weight | t | 154(main lifting hook，full counter weight,18m boom) |
Max. single unit weight for transportation | t | 37 |
